Thin Plate Sltting And Cut Length All In One Machine Of 1 5x1250mm - China

price: 2.00 Dollar US$

Thin Plate Sltting And Cut Length All In One Machine Of 1 5x1250mm

Products Photos Catalog Thin Plate Sltting Cut Photos Catalog

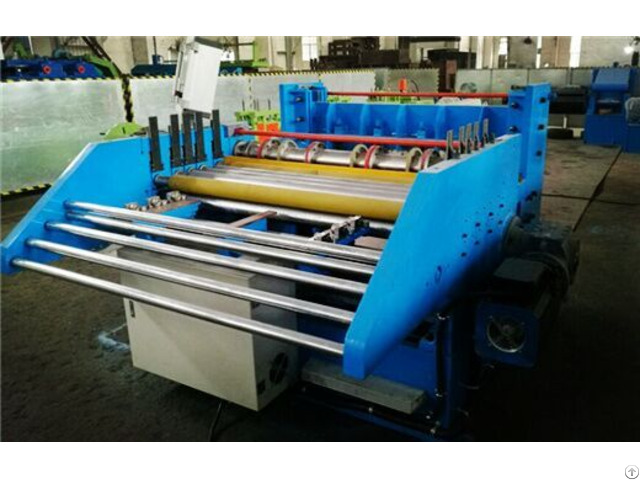

This thin plate slitting and cut to length line machine can only slitting or cut to length orslitting and cut to length at same time.

It is controlled by servo electromotor and used to regulate for high speed feed and precise length control.

The operation is done at the control table with programmable control.

Drive model: 11Kw servo motor with precise decelerating transmission and synchronous to transport the belt to feed rollers.

Specification of blades：Φ200×Φ120×40 material：6CrW2Si and 10 pieces of blades and rubber board will be provided with the machine for free, the blades can be moved.

When not in use, the blade shaft can be lifted.

Thickness of process able material：δ＝0.2-1.5mm .

Width of process able material：B≤1250

The slitting machine is designed with entry guide device, press device Slitting speed：v≤ 25m/min.

Shear model: cut from up to down electrical which is cooperate with the signal direct from the feeder and shear automatically.

Adopt gap adjusting design to cut the materials and can shear 1.5mm steel plate safely after heat treatment.


Company Contact:


  • Phone: 86-13584192710

  • Address: South Guandimiao, Changjing Town, Jiangyin, Wuxi City, Jiangsu Province, China, Wuxi , Jiangsu , China

  • Email: Email


Published date: March 31, 2020

  • Business Description: Wuxi Bangzhou Machinery Manufacturing Co.,Ltd, located in Changjing Town of Wuxi, is a company specialized in steel coil straightening machine, slitting line, cut to length line and flat bar straightening and chamfering machine.

    Our company is professional in designing and producing all kinds plates processing machines.

    At present, we have own team of design, production and sales.

    We can provide our customers with one-stop and high quality service.

    We gained the great reputations in the field of cold rolled steel and there are many new machines exported to Southeast Asia , Europe, Latin America and Africa.

    Our company has tremendous strength on technical and professional production capability.

    Supply the high quality machines and professional services timely with competitive price is our companys mission.

    From these years business, our machine are favored by our customers.

    Welcome to your inquiry, we will do our best to build the machine you want.
