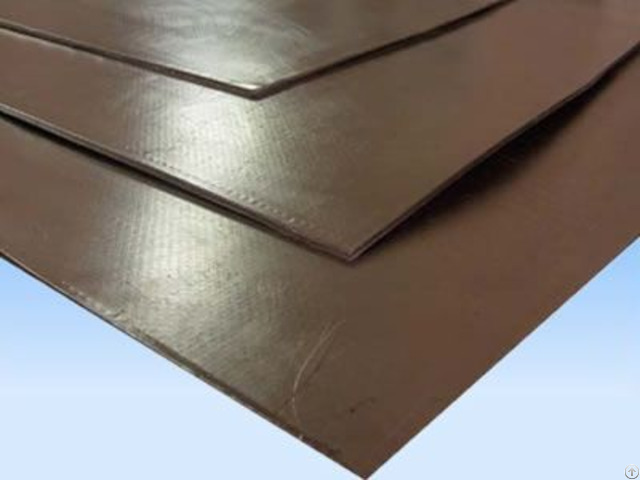

Graphite Sheet - China

Other name: Graphite Cylinder Head Gasket Sheet, Graphite composite sheet, Reinforced Graphite Sheet Reinforced Graphite composite Sheet manufactured from graphite sheet with mechanically clinched to 0.18 ~ 0.25mm thick carbon steel tanged (perforated) metal sheet - 08F tinplate insert.

It is best gasket material for cylinder head gasket and exhaust gasket.

Technical Date Sheet Density: 1.30~1.50g/cm3

Appled Temp: -200 ~ 2500 Deg.

C ( In Non Oxidizing Atmosphere)

Threshold Temp.

For Oxidation: 500 Deg.

C ( a temp at which weight reduced 1% during 24 hrs in air)

Tensile Strength: > 70 kgf/cm2

Compressive Strength: > 800 kgf/cm2

Carbon Content: > 98%

Ash Content: < 1.0%

Compressibility: >15%

Recovery: >35% Standard Sheet Size:

400mm x 1000mm

500mm x 1000mm

800mm x 1000mm

1000mm x 1000mm

Thickness: 1.0mm ~ 3.0mm

The other size is optional or according to the requirements of customers

Company Contact:

• Posted By: Hengshui Aohong Technology Co.,Ltd.

• Phone: +863185261900

• Address: 161# Ronghua Street, Taocheng District, Hengshui, Hebei, China., hengshui , Hebei , China

• Email:

• Website: https://www.asbestosgasketsheet.com

• Business Description: Hengshui Aohong Technology Co., Ltd. is a modern high-technology manufacturing enterprise specialized in production of sealing and heat insulation material with an experience of more than twenty years.

  We are equipped with the most advanced and complete machines and test facilities to produce high quality various kinds sealing material.

  Main Products:

  1) Gasket Sheet

  Asbestos sheet ,No-asbestos sheet, Non-asbestos sheet, PTFE sheet, Graphite sheet, Rubber sheet, Cork Rubber, Beater sheet, Cylinder head sheet.

  2) Heat Insulation

  Various yarn, Rope, Tape, Cloth, paper, board, blanket, felt with materials Dust free asbestos, Dusted Asbestos, Glass fiber, Ceramic fiber, Carbon fiber, Graphite, mineral wool, Crystal fiber.

  3) Braided Packing

  PTFE packing, Aramid packing, Graphite packing, Carbon fiber Packing, Synthetic fiber packing, Mineral fiber packing etc.

  4) Industrial Gasket

  Asbestos and non-asbestos gasket, rubber gasket, PTFE gasket, graphite gasket, Cylinder head gasket, etc.
