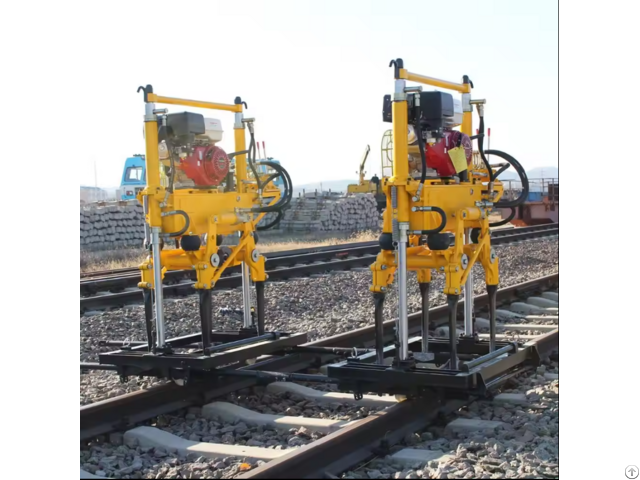

Yd 22 Hydraulic Rail Tamping Machine For Track Ballast Tamp Work - China
price: 4400.00 Dollar US$
Model NO.
YD-22
Customized
Customized
Certification
ISO9001
Type
Portable Rail Tamping Machine for Track Maintenanc
Working Efficiency
≥260 Slepers/Hour
Engine
Honda Gx390 Petrol Engine
Vibration Frequency
60~70 Hz
Working Pressure
5.0 MPa
Insertion Force
≥15.5 Kn
Tamping Insertion Depth
90~120mm Under Seepers
Power
6.6 Kw
Exciting Force
≥22kn
Clamping Force
≥7.4 Kn
Transport Package
Wooden Carton
Specification
1420*660*1380 mm
Trademark
Linkage
Origin
China
HS Code
9017800000
Production Capacity
50000PCS/Year
Product Description
Product Description
YD-22 hydraulic tamping machine is a kind of professional machinery used for railway line ballast tamping maintenance except for turnouts.
It can be operated with train inervail time, without closing sections.
It is equipped with three power modes.
They are petrol, diesel and electric
