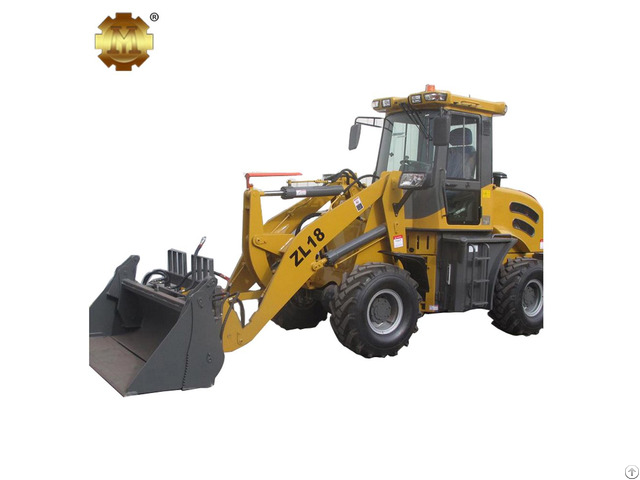

Introduction of ZL18 1.8T Mini Hydraulic Wheel Loader

1 - ZL18 1.8T mini hydraulic wheel loader uses a hydro-mechanical transmission which can make full use of engine power and can have an automatic variable transmission according to the external resistance.

It avoids power failure of the engine due to the suddenly increased external load.

The wheel loader can absorb and eliminate the vibration and impact of external load on engine.

It protects the drive system and engine, increases the service life, facilitates the operation and achieves higher economical and production efficiency.

2 - The wheel loader uses a central articulated frame and load sensing hydraulic steering gear.

The machine can achieve a short turning radius and superposition of the front and rear tracks upon turning(this will ensure safe driving.

)The wheel loader has the advantages of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.

3 - The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment.

The machine offers the driver s comfortable drive and wide view.

Parameter of ZL18 1.8T Mini Hydraulic Wheel Loader Overall Dimension

1 Length(with bucket on ground) 5850(mm)

2 - Width(to outside of wheels) 2050(mm)

3 Height(To the top of the cab) 2860(mm)

4 Wheel base 2400(mm)

5 Tread 1640(mm)

6 Min.

ground clearance 310(mm)

Main Technical Specification

1 Rated load 1800(Kg)

2 Operating weight 5800KG

3 Rated bucket capacity 1.2(CBM)

4 Bucket type Heavy duty bolt teeth

5 Max.

breakout force 51kN

6 Max.

dump clearance 2950(mm)

7 Min.

turning radius 5251mm

8 Driving system Hydraulic converter

9 Traveling speed(Km/h) 2 forward and 2 reverse

Diesel engine

1 Model YTO 4108/WeiChai 4105 2 Type In-line arrangement.

Water cooling

3 Rated output 60(kW)/58KW

4 Inter-bore of cylinder/stroke 105x125mm

5 Rated speed 2400(r/min)

6 Max.

Torque 275(N.

M)

7 Starting type Electric

8 Min.

specific fuel consumption 235(g/Kw.

h)

Transmission System

(A)Torque Converter

1 Model YJ280

2 Type Fixed-spindle power shift

3 Cooling type Pressure oil circulating

(B)Transmission case

1 Model MAP

2 Type Power shift, spur gear constantly in mesh

3 Gear shift position 2 Forward and 2 reverse gears

(C)Axle and Tire

1 Type of main reducer spiral bevel gear, single stage

2 Size of tire 20.5/70-16, 16.70-20 for optional

Brake system

1 Service brake Air assisted oil on four wheel

2 Parking brake Hand operated

Steering System

1 Type Middle articulated frame with hydraulic power steering
