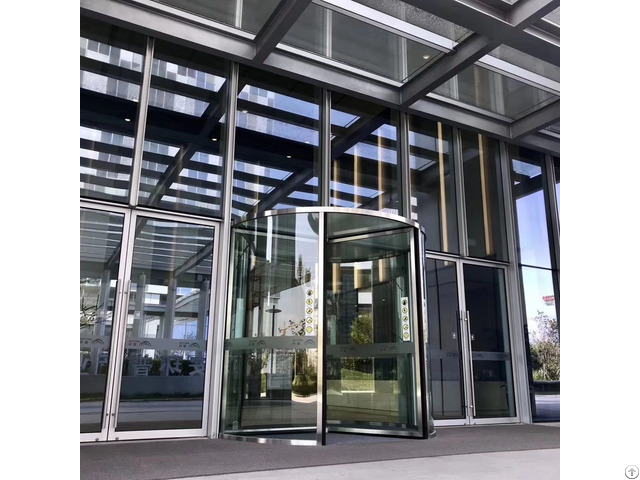

Crystal Automatic Revolving Door - China

Crystal Automatic Revolving Door Three Wings Automatic Revolving Door Two Wings Automatic Revolving Door Crystal Revolving Door is made of specifial safety glasses with minimum profile and drive unit under the ground.

The best choice for building entrance with structual glass facades because it is not only functional, but also exceedingly presentable with its automatic, quiet and stalbe working, tranparency and elegance features.

Meanwhile all glass revolving doors comply with the current standards Crystal Automatic Revolving Door Description

Product Φ A B C E

KA-C1800-3E 1800 18 2300 800 1852

KA-C2000-3E 2000 18 2300 900 2052

KA-C2200-3E 2200 18 2300 1000 2252

KA-C2400-3E 2400 18 2300 1100 2452

KA-C2600-3E 2600 18 2300 1200 2652

KA-C2800-3E 2800 18 2300 1300 2852

Note :

In addition to the standard dimensions, several other dimensions are available.

For more information KAST-Crystal Automatic Revolving Door Technical Datas, Revolving speed 0.45 ~ 0.7m/s

Standby speed 0.3 ~ 0.35m/s

Working Temperature -30°C ~ 50°C

Ambient humidity <90%

Power voltage Single phase AC230V~100V, 50Hz~60Hz, 10A

Power consumption(working) 150W

Power consumption(standby) 75W

Noise <60dB

Lighting power LED downlight 18W, Halogen lamp 100W

Motor power 180W-250W

UPS power supply time 3min We are dedicated to automatic door development, production and its peripheral products.

We can provide a complete set of door automation products including automatic doors and their accessories, access control systems, etc.
