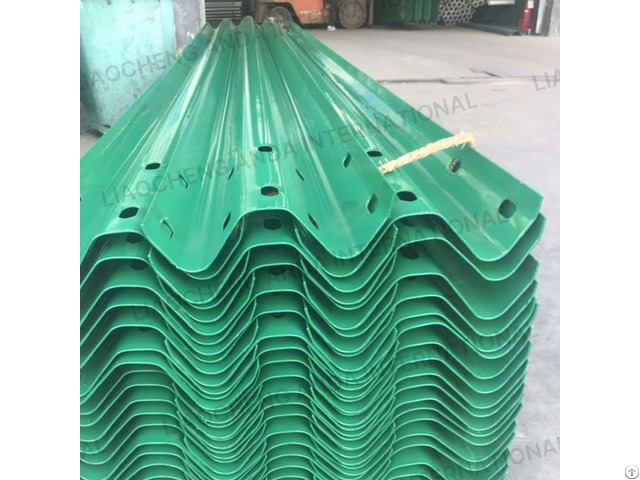

Double Wave Guardrail - China

Double-wave corrugated guardrail, a type of highway guardrail, is an important facility for road safety.

It is mainly used in highways, rural roads, provincial roads, etc.

Its characteristic is that it is composed of two corrugated steel beams.

Common installation methods include driven-in type, concrete foundation type, and embedded sleeve type.

The driven-in type is suitable for sections with good soil quality.

The columns are directly driven into the ground.

The construction speed is fast and the columns are stable.

The concrete foundation type is suitable for areas with rocks or poor soil quality.

The columns are fixed by pouring concrete foundation to ensure the stability of the guardrail.

The embedded sleeve type is to embed the sleeve in the foundation first, and then insert the column into the sleeve and fix it.

It is suitable for sections where guardrails need to be frequently disassembled or replaced.

Applications

The W Beam Guardrail is suitable for:

Highway and expressway safety barriers

Bridge and tunnel edge protection

Mountain roads and scenic routes

Urban roads and pedestrian zones

Traffic management and roadside safety systems

Custom solutions are available for specific project requirements, including length, height, and coating options.

Specifications

Our W Beam Guardrails are manufactured to meet ISO, EN, and ASTM standards, with the following typical specifications:

Type Length (mm) Height (mm) Thickness (mm) Coating Application

W Beam Guardrail 1.5m 1500 700 3.0 Hot-Dipped Galvanized Highway, bridge, tunnel

W Beam Guardrail 2.0m 2000 700 3.5 Hot-Dipped Galvanized Expressway, mountain road

W Beam Guardrail 2.5m 2500 800 4.0 Plastic Coated / Galvanized Scenic road, urban road

Company Contact:

• Posted By: Liaocheng Anda International Trade Co., Ltd

• Phone: +86 135 6126 8856

• Address: Dongchang East Road, Liuyuan Office, Dongchangfu District, Liaocheng City, Shandong , China

• Email:

• Website: https://www.andaintl.com/

• Business Description: Liaocheng Anda International Trade Co., Ltd. is located in Liuyuan Street, Dongchangfu District, Liaocheng City, Shandong Province.

  It specializes in the production of cold-rolled plates, galvanized plates, color-coated plates, highway corrugated beam guardrails and other traffic safety facilities.

  The company is a modern industry integrating production and operation.

  The factory is equipped with 2 cold roll-forming production lines for corrugated beams, 2 hot-dip galvanizing production lines, 1 powder coating production line, and 2 additional powder coating production lines, as well as cold rolling and galvanizing production lines, among others.

  With an annual production capacity of up to 54,000 tons.
