High Quality Spiral Screw Pile Driver - China
price: 25000.00 Dollar US$
china coal-0001

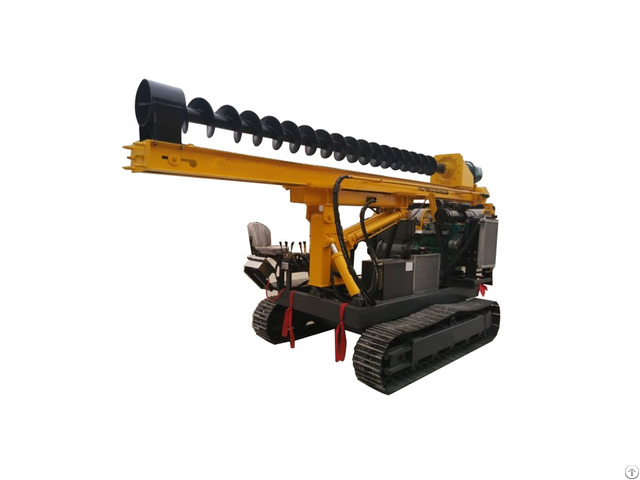

Introduction of High Quality Spiral Screw Pile Driver
High Quality Spiral Screw Pile Driver can be used for power generation and external power supply.
It is suitable for piling works such as building foundation construction, highway foundation strengthening, high-speed railway power facilities, wind power plant, solar photovoltaic power plant, soft soil treatment and reinforcement construction.
Its main rod is 3.5m.
Feature of High Quality Spiral Screw Pile Driver
1 - The design of High Quality Spiral Screw Pile Driveris reasonable, beautiful appearance and simple operation.
2 - It can move back and forth, left and right rotation of 270 degrees, 360 degrees two kinds of products with quick positioning.
3 - Fast piling, high efficiency, which can also be customized according to customer requirements.
Parameters of High Quality Spiral Screw Pile Driver Bore diameter(DTH hammer)(mm) 90-300
Bore depth(m) 20-100
Air consumption(m³/min) 10-26
Air pressure(Mpa) 0.7-1.6(medium);1.6-2.46( high)
Pipe diameter(mm) 76/89
For rock(F) 6-20
Bore diameter(screw)(mm) Max 400
Bore depth(m) 0-30
Screw pipe diameter(mm) 130-400
Once promotion(mm) 3200
Skid pitch(°) 120
Swinging angle of skid(°) Left and right total 40
Boom swing angle(°) Left and right total 50
Rotation speed(r/min) 0-110
Host power(kw) 84
Climb ability(°) 35
Dimension(L*W*H)(mm) 5300*1950*2580
Weight(kg) 5800
Walk speed(km/h) 0-2.5
