Hollow Block Making Machine Linkage Separating Delicate - China

http: //www.

zgzyjl.

com/ 10-15 hollow block making machine production

lines suitable for large and medium-sized enterprises to invest to

establish semi-automatic or fully automatic block production lines, and

realize automated production.

Automatic block production lines, includes

a cluster cars, steam curing cellar of block production line , are of

high degree of automation .

It can bring the fully-automated production

process of batch charging, stir forming , transmission and curing,

palletizing and packing into practice.

http: //www.

zgzyjl.

com/hollow-block-making-machine.

html

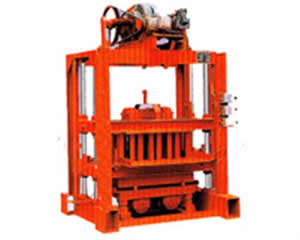

hollow block making machine Features:

1)10-15 hollow block making machine is adapt in production of colorfuleight parallel pallet brick layered

surface Burface Batching System can automaicslly make multi-colorful brick;

2) On the base of keeping the previous function and quality of the 10-15, the machine sdd another

attachments the Automatic Layered surfaceBatching plant(the structure is designed to be mobile)is only

needconnected with the bnioock malking machine when it making the layered colorfulproducts and it is

finished in only several minutes the upgrade software of control system has been installed to the machine

and it has the many types of surface material batching functions the machine is in high level of

automaticintelligence it can choose freely in the quantity of the material surface layered the extension is

very delicate and averaged and the high subtle controlled system save the surface material and reduce the

cost making the products standard and beautiful;

3)Low investment, high output ;

4)Use waste to make bricks ;

5)10-15 hollow block making machine only need to change the mould of machine when producing

floored ciothmaterial colorful products such as wall blocks water conservancy products and city construct

project products .

hollow block making machine Working principle:

The model is designed with a device separating material storage and material distribution.

Storage is

photo-electrically controlled and material s is distributed as needed.

Storage hopper is separated from

vibration source to avoid premature liquefaction of some concrete due to the effect of aftershock Special

arch device ensures rapid and even distribution of materials, a swinging distribution device is fixed in the

hopper and the materials are evenly sent to the mould box.

hollow block making machine range:

It produces various bricks/blocks including color-face bricks (layered material feeding), through-body

tiles, lock linkage blocks, road curb bricks, hydraulic blocks, hollow blocks, perforated bricks, and standard

bricks etc.

hollow block making machine Technical Parameters:

Dimension of host machine

3500×2220×2850mm

Host machine power

45.38KW

Moulding area

1025×810mm

Vibration force

100KN

Moulding period

15-25S

Mixer model

JS1000/JS750

The size of the pallet

1350×900×30mm

General water Consumption

12T/every day

Weight of the host machine

14T

Voltage

380V
