2100kg Button Magnet - China

precast concrete formworks Button Magnet

quick operation Button Magnet

customized Button Magnet

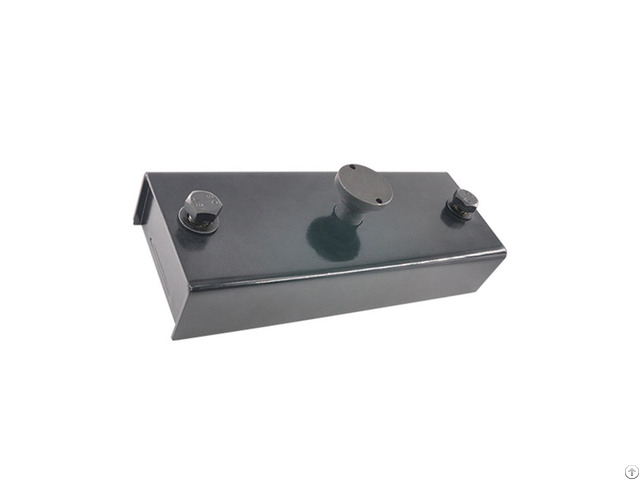

2100Kg button magnet is magnetic shuttering solutions for precast concrete formworks!

In fact, construction market is too small compared to all Neodymium magnet markets, and Neodymium magnet is also too small to extensive construction accessories.

Almost none of magnet suppliers have interest or knowledge in the application of magnet in the construction market.

We focus our assembly attention on developing and manufacturing Neodymium magnet assemblies for the construction industry, especially precast concrete industry.

The precast concrete industry has been searching for a more economical and efficient formwork method.

In the past, some conventional magnets were used to position and fasten the formwork, but considerable mechanical loads with a hammer were required, which was easy to damage the magnets and the surface of the expensive formwork tables as well.

Thanks to Horizon’s knowledge and experienced experts in magnet and construction fields, in order to facilitate the formwork activities, Horizon are developing and manufacturing our own shuttering magnet to solve this problem successfully.

Our button magnet provides quick operation leading to improved efficiency when setting out and breaking down the formwork.

It consists of a switchable NdFeB magnet unit and a steel casing which forms a certain designed magnetic circuit.

By pressing the button on top of the steel casing, this magnetic force is activated so that this magnet can fasten the formwork to the steel table tightly.

In a deactivated mode, the magnet is easy to position.

By means of two threaded holes integrated on the top, this magnet can be equipped with various adapters, which can provide unlimited options for use.

2100Kg Button Magnet Characteristics:

Use with wood or steel formworks

Easy to operate

Simple and exact positioning

Adhesive force ranging from 450 Kg to 3100 Kg

Avoid welding or bolting to the formwork table therefore preserving surface finish

Same magnet can be used for different purposes

Integrated threaded holes to adapt formwork

Adapters to be custom made

Technical Data:

Part Number L

(mm) L 1

(mm) H

(mm) M

(mm) W

(mm) Force

(kg) Maximum Operating Temperature

(°C)

HM-MF-0900 280 230 60 12 70 900 80

HM-MF-1600 270 218 60 16 120 1600 80

HM-MF-2100 320 270 60 16 120 2100 80

HM-MF-2500 320 270 60 16 120 2500 80

HM-MF-3100 320 270 60 16 160 3100 80

More information please view here.

Company Contact:

• Posted By: Ningbo Horizon Magnetic Technologies Co., Ltd.

• Phone: 18957413363

• Address: 128# Buzheng East Road, Haishu District, Ningbo, China, Ningbo , zhejiang , China

• Email:

• Website: https://www.horizonmagnet.com/

• Business Description: Not only a magnet supplier, but also a magnetic solutions supplier!

  Nowadays the technology is developing daily, and then new materials and applications are developed as well.

  As a leading magnet company, we take advantage of our Neodymium magnets and magnetic solutions to assist you in your increased projects related to magnets.

  WEBSITE: https: //www.

  horizonmagnet.

  com

  In order to fullfil this commitment, Ningbo Horizon Magnetic Technologies Co., Ltd was founded by a professional team with a depth of expertise and breadth of experience in the magnet field.

  We are specialized in the development and production of sintered Neodymium magnets and related magnetic assemblies with facilities in Ningbo, China which is the source of rare earth permanent magnets.

  In order to keep with overwhelming customers needs, we are equipped with the state-of-the-art research, production and testing equipments, which help us enjoy steady but increasing growth.

  Because we are a medium-sized company and supply 600 tons of Neodymium magnets and millions of magnetic assemblies per year, we are able to react quickly to the requirements of our customers throughout the world.

  Our rare earth magnets and magnetic assemblies are popular with hundreds of customers in the fields of electric motor, construction, industrial, defense & aerospace, oil & gas, and automation & robtics.

  Due to our own medidum size, we quite understand medium-sized companies situations, requirements and difficulty.

  Therefore we are dedicated to cooperating with and helping medium-sized customers out.

  When we are supplying customers with all series of Neodymium rare earth magnets, we focus on research and production of high end series which are mainly used in electric motors, such as servo motors, linear motors, traction motors, compressor motors, etc.

  Thanks to our knowledge in precast concrete industry, for assemblies we concentrate on magnetic assemblies such as shuttering magnets, triangle magnet chamfers, inserted fixing magnets, pot magnets, etc.

  You can tell us about your project and we can assist you from idea to serial production.

  Our technicians and production experts can contribute valuable time and cost effective measures at any stage of your project.

  No matter whether you are currently designing, developing or in production, Horizon can make a difference.
