Co2 Cutting Cw6000 Industrial Water Cooling Chiller - China

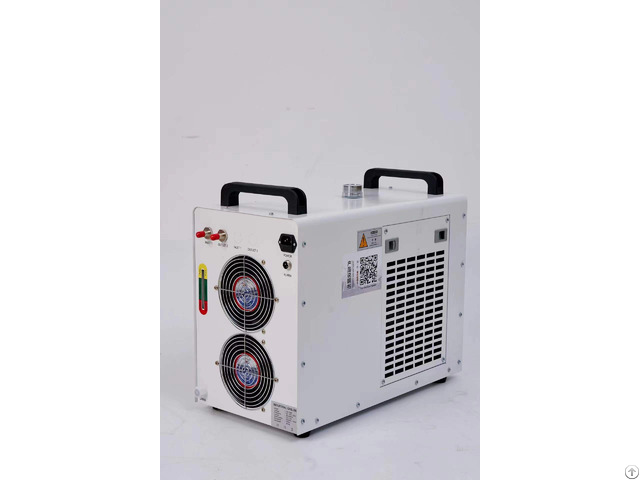

CW6000 water cooling chiller for large power CO2 laser tube

Feature

POWERFUL COOLING: Sunlite S&A CW3000/CW5000/CW5200/CW60 00 industrial Chiller uses standard R410a refrigerant to keep laser cutting and engraving machines up to 150W nice and cool during use; its 2.6 GPM flow rate and 0.9hp compressor can cool up to 5186 BTU per hour

2 - CAPACIOUS TANK: The 1.6-gallon (6L) Industrial Water Chiller water tank is enclosed to reduce evaporation and provide long-term service between refills; the clear observation window lets you know when it's time to top off

HIGH-GRADE PORTS: Our Industrial Water Chiller's inlet and outlet ports are made of premium brass for long-term corrosion-free performance; their careful design prevents any issues with leaks as it operates

3 - SAFE OPERATION: This Laser Tube Industrial Water Chiller includes internal sensors to keep temperatures within 0.3℃ of constant and to let you know via digital display, indicator lights, and alarms when everything's going smoothly and when it's time to make adjustments

4 - SATISFACTION GUARANTEED: BlueTime's Industrial Water Chiller Strong warranty and friendly 24/7 customer service let you order with confidence that this Co2 Laser Chiller industrial will meet all your cooling needs for your CO2 laser Engraving Cutting machine.

Specification

Model CW3000DG CW3000TG CW5000DG CW5000TG CW5200DH CW5200TH CW6000AH CW6000DH

Voltage AC 1P 110V AC 1P 220V AC 1P 110V AC 1P 220V AC 1P 110V AC 1P 220V AC 1P 220V AC 1P 110V

Frequency 50/60Hz 60Hz 50/60Hz 60Hz 50/60Hz 50Hz 60Hz

Current 0.4-0.9A 0.4-1A 0.4-5.3A 0.4-3.1A 0.5-8.9A 0 - 5-4.6A 0.3-6.3A 0.45-14.7A

Machine power 0.10kW 0.43kW 0.44/0.46kW 0.77kW 0.74/0.82kW 1.2kW 1.6kW

Radiating capacity 50W/℃ / / / / / /

Compressor power / / 0.38kW 0.37/0.39kW 0.66kW 0.6/0.62kW 1.06kW 1.12kW

Nominal cooling capacity / / 1.03 kW 0.89/1.08 kW 1.67kW 1.77/2.14kW 3.14kW 3.15kW

Pump power / / 0.03kW 0.05kW 0.05kW

Max.

lift 10M 10M 12M 12M

Max.

flow 10L/min 10L/min 13L/min 13L/min

N.

W 8.7Kgs 9Kgs 21.5Kgs 20.5Kgs 22.7Kgs 26.4Kgs 60KG

G.

W 11 Kgs 11.3 Kgs 24.5Kgs 23.5Kgs 25.7Kgs 29.4Kgs 70KG

Precision / / ±0.3℃ ±0.3℃ ±0.5℃

Protection Flow alarm Flow alarm Flow alarm Flow alarm

Tank capacity 9L 6L 6L 15L

Inlet and outlet OD 10mm barbed connector OD 10mm barbed connector OD 10mm barbed connector / /

Dimension 49 X 27 X 38cm (L X W X H) 58 X 29 X 47cm (L X W X H) 58 X 29 X 47cm (L X W X H) 67x47x89 cm

Package dimension 59 X 38 X 47cm (L X W X H) 65 X 39X 56cm (L X W X H) 65 X 39 X 56cm (L X W X H) 74x61x104 cm

suitable laser tube power ≤80W 80W-120W 120W-130W Above 130W

The working current can be different under different working conditions.

The above information is for reference only.

Please subject to the actual delivered product.
