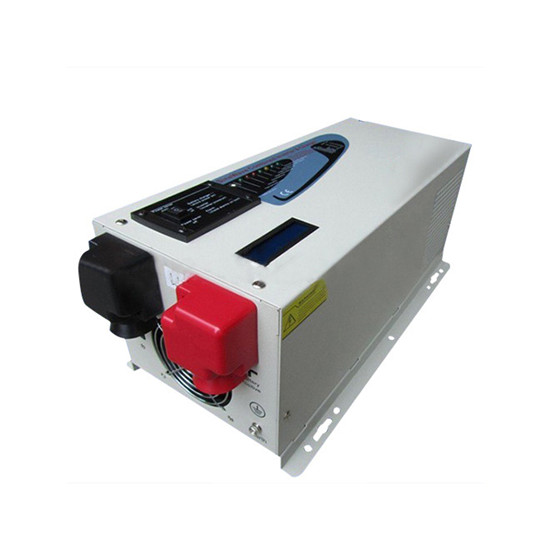

Sungold Power 1000w Peak 2000w Dc 12v Modified Wave Inverter With Charger Voltage Display - China

Inverter with Charger is a device that converts direct current (DC) to

alternating current (AC) to power a variety of equipment, including

power tools, computers, appliances, pumps, audio/video equipment and

more.

Power Inverter Charger utilize a vehicle's or boat's battery or

separate user-supplied batteries to supply power to connected equipment.

In addition, Inverter with Chargers provide reliable alternate AC power

during utility power problems, such as blackouts, brownouts,

overvoltages and surges.

When utility power is present, Inverter with

Chargers automatically pass through power to your equipment while

simultaneously recharging your connected batteries.

When utility power

is absent, such as during a blackout in stationary applications or while

driving in mobile applications, Inverter with Chargers automatically

switch from utility power to battery backup power.

Features:

1)1000W continuous output power and 2000W surge power.

2)Suitable for mobile AC power used in car, household and industry.

3)High surge power to start difficult loads such as heavy-duty power tools, motor

4)Suitable for most AC-powered electronic equipment including computers, TV, icebox, and more.

5)Enjoy full and stable power with storage battery together.

6)It can save 1/3 charge time with pulse charge, good for saving charge time and high life for storage battery.

7)With Uninterruptible Power Source, Time of fully automatic converting 10ms

8) size: 31.5X15.2X5.5cm, Net weight: 3kg

Specification

Invert part:

Rated power: 1000w

output continuous power: 1000w

output peak power: 2000w

DC input voltage: 12V/24V

Working voltage: 11-15V / 21-29V

Low voltage protection: 9V-10.5V / 18.5V-20.5V

Lack voltage alarm: 9.5V-11V/ 19.5V-21V

Over-voltage protection: ≥15V / ≥29V

DC input Fuse: 25A*7

Output wave form: modified sine wave

Output voltage: 110V/120V/220V/230V/240V

Output frequency: 50HZ/60HZ

Reserving efficency: ≥ 85%

Overload protection: 1000W-1200W

Short circuit protection: YES

Working temperature: -10°c- +50°c

Temperature protection: +60°c - +70°c

Green led indicator: Light(fully charge), flash(charging), extinguish(no AC supply or in AC input voltage protection station)

Charge Part:

Rate Power: 1000W

AC output voltage: 110V/120V ; 220V/230V/240V

AC input frequency: 50HZ/60HZ

AC working voltage: 85V-130V / 170V-250V

AC input low voltage protection: ≤75V / ≤150V

AC input high voltage protection: ≥130V / ≥250V

AC input fuse: 15A or 10A

Charge style: intelligent positive and negative pulse charge

Charge process: prep charge.

main charge.

float charge.

charge fully

Charge current: Maximal 5A

Charge voltage: 14.5V-16V / 29V-32V

Switching time from inverter to AC supply:

≤10ms(no need to restart computer when connected to computer

Switching time from AC supply to inverter:

≤10ms( no need to restart computer when connected to computer

Conditional from inverter to AC supply: In the normal AC input voltage

Conditional from AC supply to inverter: No AC input or AC input protection happen

Yellow led indicator:

Light(fully charge), flash(charging), extinguish(no AC supply or in AC input voltage protection station)
