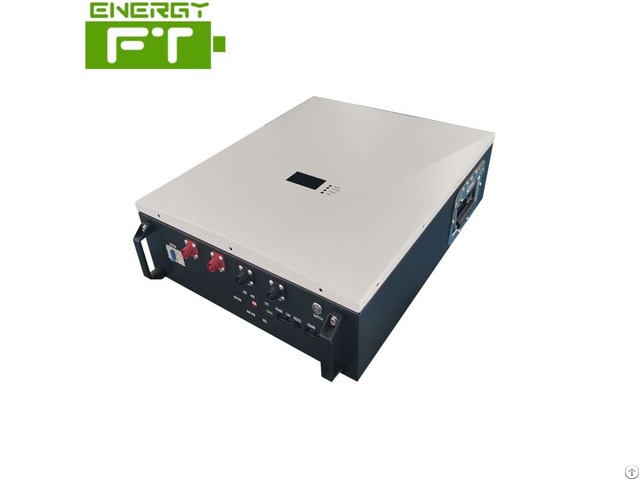

Home Energy Storage Powerwall 48v 100ah 5kwh Lithium Lifepo4 Battery - China

Home energy storage Powerwall 48V 100Ah 5KWh lithium lifepo4 Battery LiFePO4(lithium iron phosphate)is a li-ion Battery technology that is safe, powerful and plug compatible with most lead acid Battery charging systems.

They are safest battery type available today.

Future Energy LFP battery has a built-in Battery Management System(BMS), we can guarantee the safety and reliability of our batteries.

Our Vision: Provide world-class LFP Battery pack solution for world-widely customers 1 - Major technique parameters of Powerwall LiFePO4 Battery: 1)Model: FT-48100-Powerwall 2)Normal Capacity: 100Ah 3)Normal Voltage: 48V 4)Energy: 4, 8KWh 5)Charging Voltage: ≤54, 75V 6)Shell materials: Q235 7)Max.

Continuous Charge &Discharge Current: 1C(100A) 8)Operation Temperature Range(Charge): 0-45ºC 9)Operation Temperature Range(Discharge): -20~65ºC 10)Dimensions: Approx.

452*548*132mm (17, 8*21, 57*5, 2in)Excluded terminals, handles & mounting ears) 11)N.

W: Approx.

43KG 2 - LiFePO4 Battery widely used in: Energy storage system: 24V 100Ah, 24V 200Ah, 48V 100Ah, 48V 200Ah, 48V 300Ah, 51, 2V 100Ah, 51, 2V 200Ah.

5KWh, 10KWh, 15KWh LiFePO4 Battery for Solar energy storage, Home energy storage, Wind energy storage, Hydro energy storage, Off-grid system, solar power system, Camping, Island, Outdoor power supply, Telecom, base station, Data centers, Server rooms, UPS(Uninterrupted Power Supply), Backup System, Forklift, Golf Cart, RV, AGV, electric boats, Marine, Medical Equipment etc Hot applications.

3 - Wall mounted LiFePO4 Battery major features: 1)Standard size: it can be installed on the wall, Save space.

2)High energy density & Environmental Protection economy.

3)Meets all UN transportation testing 4)Intelligent BMS: it can be communicated with FSU, real-time monitoring and remote control battery string status, anti-theft locking machine, alarm model output etc.

5)Voltage, Capacity, Shell, Cables, Connector, Functions, brand etc can be customized.

6)Avoid Over Charge, Over Discharge, Short-Circuit Over Current, Over Voltage, Overload etc and have Balance Voltage, Anti-Protection, Temperature detection, Communicate Function, Alarm, Wireless monitoring functions etc.

7)Widly operating temperature range: -20~65℃ 8)Reliable and Superior safety: High safety lithium iron phosphate cell, with high-precision BMS; 9)Longer Cycle-life: over 3000times at 1C discharge, much Lower usage cost 4 - Major tests ensure high quality: 1)Initial Performance Test A.

Open-Circuit Voltage B.

Internal Impedance C: Min.

Rated Capacity 2)Cycle Life 3)Leakage-Proof Test 4)Vibration Test 5)Drop Test 6)Crush Test 7)Short Circuit Test: BothºC20 and 60ºC 8)Impact Test 9)Forced Discharge Test 10)Nail Pricking Test .

5 - Warning: Do not dispose of in fire or heat.

Do not run it to out of power, or it would not be charged again.

Do not puncture, damage and disassemble.

Do not mix fresh batteries with used batteries.

Please avoid short-circuit operation in case of generating high temperature.

Please avoid charging and using at thesame time.

it is harmful to the battery.
