Ni Mh 12v D10000mah Rechargeable Battery Pack 10s Of Fh D10000 - China

1 - Model: Ni-MH 12V D10000mAh Rechargeable battery pack(10S of FH-D10000).

2 - UN, RoHS, CE approved Ni-MH Battery pack.

3 - Ni-MH Battery pack OEM orders are welcomed.

4 - Ni-MH Battery pack is widely used to consumer portable equipments, Information Devices, Miner lamps, Power tools, Remote Control Toys, Medical Devices, vacuum cleaner, cordless phone, etc.

5 - Bulk pack, blister card are available.

6 - For Ni-MH Standard Industrial series D size, other capacity are availabe from 2500mAh to 10000mAh.

7 - Customizes shapes, capacity, and voltage are accepted.

8 - Individual cells can be assembled in parallel or series into stacks as required by customers.

9 - No memory effect, High voltage, high energy density, long cycle life.

10 - Eco-friendly.

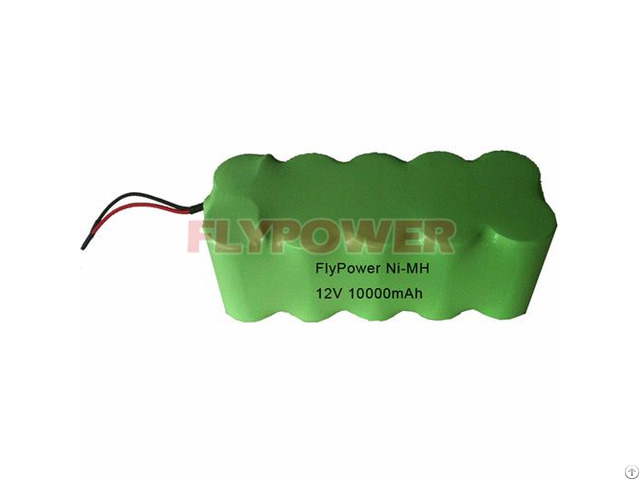

Ni-MH 12V D10000mAh Rechargeable battery pack(10S of FH-D10000)

Cell Ni-MH

Model 10S of FH-D10000

Nominal Voltage 12V

Nominal Capacity 10000mAh

Minimal Capacity 9800mAh

Standard Charge 1000 mA, 16 hrs

Rapid Charge: 5000 mA, 2.2 hrs (control required)

Continuous Discharge less than 15000 mA

Final Discharge Voltage 1.0 V (less than 1.0C)

Service Life ≥500 cycles (IEC61951-2-2003)

Dimension(W*L*H) 65mm*165mm*65

Weight Approx.

1800 g

Ambient Temperature: Standard charge: 0~45 ºC

Rapid charge: 10~40 ºC

Discharge: -20~50 ºC

Store (65+20% RH) Less than 360 day: -20~30 ºC

Less than 30 day: -20~40 ºC

Notes:

1.

"C" behind the model no.

refers to normal consumer series ;

2 - Capacity obtained after charge at 0.1C for 16 hrs and discharge at 0.2C to 1.0V at 25 ºC;

3 - Control required:

1) -ΔV: 0 ~ 5mV

2) d T / d t: 0.8 ºC/ min

3) T co: 40 ~ 45 ºC
