Tk Tv22 Video Wall Controller - China

TK-TV22 video wall controller is specific aim at LCD TV, ultra-narrow LCD screen, HD projector, support 4-way HDMI signal output, connected to 4 LCD TV or other display device, can be customized 2 * 2, 1 * 4, 4 * 1 modes according to user's needs.

Products using HD processing chip, support 1080P input and output signals.

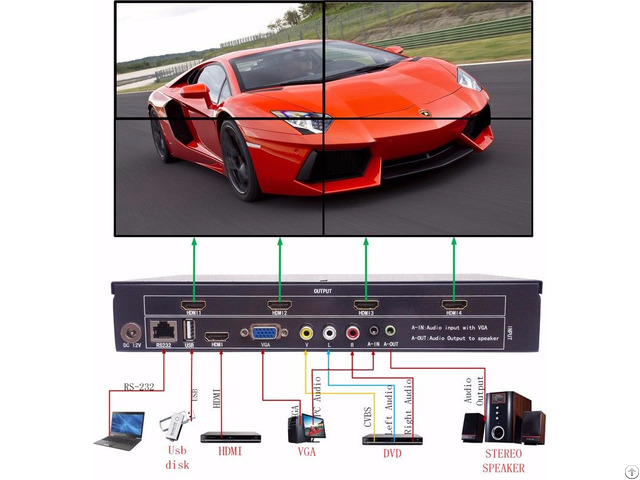

As well as supports 1 composite video, 1 VGA, 1 channel USB, 1 HDMI inputs, all inputs can be switched to the large multi-screen display, and the audio and video output simultaneously.

Users are more simple, more intuitive, more humane in operation, designed infrared remote control, the center control can also be controlled via RS-232 - User through buttons or the remote control process one-click shortcut control and full-function.



Features:

1, Quad-screen processing

TK-TV22 supports 4-way HDMI output signal, connected to 4 LCD TV or other display devices such as projectors, DLP, plasma and other display unit, the 4 display unit spliced to form a large screen.

TK-TV22 can be customized 2 * 2, 1 * 4, 4 * 1 and other mosaic pattern according to the user's requirements.

2, input signal

Supports 1 composite video, 1 VGA, 1 HDMI, 1 USB four signal inputs totally, HDMI and USB signal interface with audio decoding, composite video and VGA signal plus the corresponding audio binding interface, all the input video signal can achieve synchronized output switching with audio.

3, Mirroring

Compared with ordinary video wall controller, TK-TV22 contain 180-degree image flip function for each screen.

A up row of LCD TV rotated 180 degrees, thereby significantly reducing LCD splicing gap, reducing image distortion caused by the large seam.

4, Edge mask function

All display unit has some physical border gap, the image will appear pull-apart on visually and feel very unnatural if no edge shielding; past the edge mask processing, the image without deformation, stretching, more natural and realistic.

5, U disk play

Our products enable USB playback and stitching.

After the basic functions of LCD splicing, users achieve simple video or picture format stitching playback, on the USB interface of our products just need to insert a U disk, no need to configurate a computer or other playback devices, simple and practical .

USB can support a number of popular video, pictures, MP3, TXT documents;

it can support the selected video or all Play;

It can support all video round robin play, pause, fast-forward, the program list and other functions;

6, Remote control

The remote control specially customized for TK-TV22, all functions correspond with it's buttons exactly.

All functions can be done on the remote control like settings, switching, adjustable, and use ultra-sensitive design, remote control distance up to 7-10 meters.
