S And A Brand Cw 5200 Industrial Water Cooling Chiller - China

CW5200 water cooling chiller for CO2 laser cutting machine

Summarr

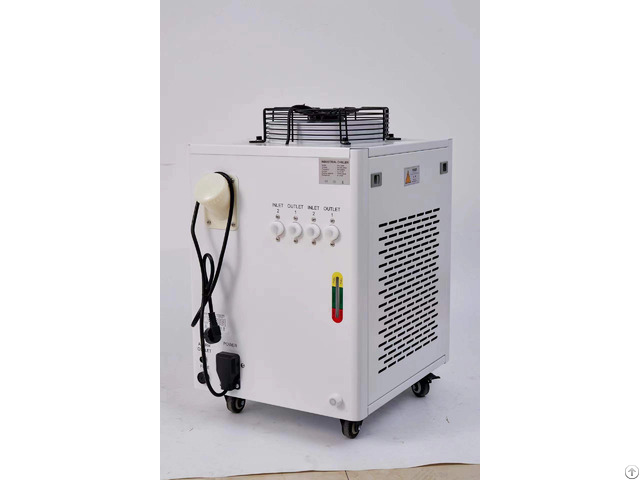

CW-5200 is refrigeration type industrial water chiller of 1400W cooling capacity.

It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air.

The water temperature is able to be adjusted.

There are 2 specifications as 1 water outlet/inlet and dual water outlet/inlet, applicable to cool single laser glass tube.

Features:

1400W cooling capacity; optional environmental refrigerant;

2 - Compact size, long working life and simple operation;

3 - 0.3 centigrade precisely temperature control;

4 - The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and displayfunctions;

5 - Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

6 - Multiple power specifications; Specification:

CW-5200AG: applied to cool a single 130W CO2 laser tube

CW-5200AH: applied to a cool a single 8KW CNC spindle, welding equipment or two 100W CO2 laser tubes.

CW-5200AI: applied to a cool single 50W-75W laser diode, a single15W-30W solid-state laser or a single 30W RF laser tube;

Model CW-5200AG CW-5200BG CW-5200DG CW-5200AH CW-5200BH CW-5200DH CW-5200AI CW-5204BH

voltage AC 1P 220V AC 1P 220V AC 1P 110V AC 1P 220V AC 1P 220V AC 1P 110V AC 1P 220V AC 1P 220V

Frequency 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz 50Hz 60Hz

Current 2.4-3.1A 2.6-3.3A 4.5-6.5A 2.4-3.1A 2.6-3.3A 4.5-6.5A 2.4-3.1A 2.1~3.3A

compressor power 0.52KW 0.5KW 0.68KW 0.52KW 0.5KW 0.68KW 0.52KW 0.5KW 0.71HP 0.68HP 0.93HP 0.71HP 0.68HP 0.93HP 0.71HP 0.68HP

Refrigeration capacity 5084Btu/h 4982Btu/h 5186Btu/h 5084Btu/h 4982Btu/h 5186Btu/h 8184Btu/h 4982Btu/h 1.49KW 1.46KW 1.56KW 1.49KW 1.46KW 1.56KW 1.49KW 1.46KW 1281Kcal/h 1256Kcal/h 1307Kcal/h 1281Kcal/h 1256Kcal/h 1730Kcal/h 1281Kcal/h 1256Kcal/h

Refrigerant R-22/R-410a

Refrigerant charge 360g 380g 350g 360g 380g 350g 360g 380g

temp.

precision 0.3 centigrade

Reducer Capillary

protection Overcurrent protection for compressor, flow alarm, over temperature alarm

Pump power 0.03KW 0.051KW 0.1KW

Tank capacity 6L

Inlet and outlet External D10mm brass connector

Max.

lift 10M 12M 25M

Max.

flow 10L/min 13L/min 16L/min

N.

W 30Kgs

G.

W 35Kgs

Dimension 58 x 33 x 46 cm

Package dimension 75 x 48 x 66 cm
