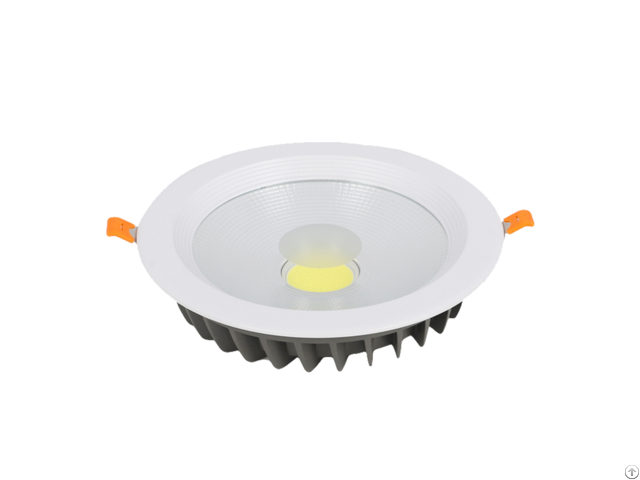

Led Downlight Dtt Series - China

LED Downlight DTT Series high efficiency LED Downlight custom LED Downlight manufacturer Model: JST-DTT

Wattage: 7W-50W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: ＞90

Finish Color: White/Black/Customized


Beam Angle: 90°/110°

Diameter: 90mm-230mm

Cutout: 75mm-210mm Description

Jarstar DTT Series are originally researched and developed by JST, Protection class up to IP20, die-casting aluminum housing, baking finished surface, use bright reflective paper, reflectivity> 95%, high-grade frosted glass, light transmittance> 90%, high quality Citizen/Cree LEDs, with OSRAM/LIFUD/TRIDONIC high quality exterior driver, dimmable, good heat sink, brilliant quality, more than 50, 000 hours life span.

Advantages

1 - High brightness, Low SDCM﹤3, low light decline

2 - High efficacy, high illuminance

3 - Glare-free design, perfect light spot and accurate beam angle, make surroundings of comfortable illumination

4 - Exterior driver(100-277v input)

5 - Refined components and design, guarantee a long life span of over 50, 000 hours Specification

Model Power CRI CCT PF Current Input Voltage Beam Angle Dimension Cutout

JST-DTT 7W >80/90 2700K-5000K >0.65 0.15A AC220-240V 90°/110° D90*H55mm 75mm

JST-DTT 10W >80/90 2700K-5000K >0.65 0.25A AC220-240V 90°/110° D120*H55mm 95mm

JST-DTT 15W >80/90 2700K-5000K >0.90 0.35A AC220-240V 90°/110° D175*H52mm 150mm

JST-DTT 20W >80/90 2700K-5000K >0.90 0.50A AC220-240V 90°/110° D195*H52mm 170mm

JST-DTT 30W >80/90 2700K-5000K >0.90 0.75A AC220-240V 90°/110° D225*H52mm 205mm

JST-DTT 40W >80/90 2700K-5000K >0.90 1.00A AC220-240V 90°/110° D225*H66mm 205mm

JST-DTT 50W >80/90 2700K-5000K >0.90 1.25A AC220-240V 90°/110° D230*H108mm 210mm
