Zgsm Tgd280j Led Projector Light - China

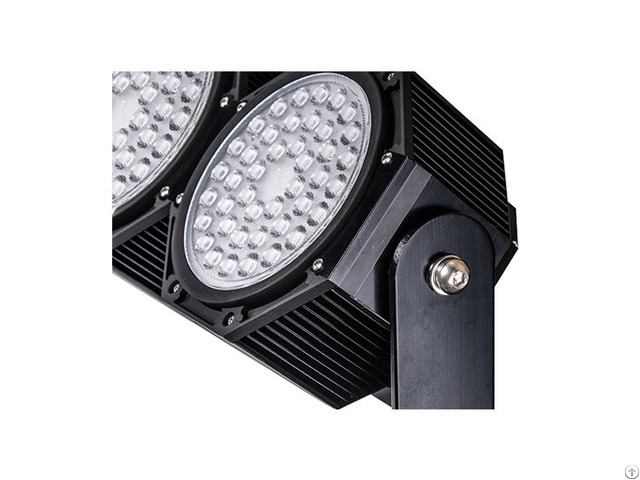

Series J LED Projector Light

Model:

ZGSM-TGD280J

Application：

Stadium | Arena | Golf course | Tennis court | Airport

KEY FEATURES

1 - Up to 840W, max lumens is 94, 000lm.

2 - Special circuit design, single LED’s damage won't affect others' normal work.

3 - Modular design for easy installation, replacement and maintenance.

4 - Mounting bracket for 360 degree adjustment.

5 - Multiple lighting control options are available, e.g. DALI, 1-10V.

6 - Designed to last at least 100, 000 hours at L70.

7 - Multiple lighting distributions are available.

SPECIFICATIONS

Model ZGSM-TGD280J

LED Brand Philips LUXEON® TX

Driver Brand INVENTRONICS EUC Series

Norminal Wattage 280W

LED Quantity 126 Pcs

Input Voltage 100-240/277VAC, 50/60Hz

Power Efficiency >90%

Power Factor >0.95

Lamp Rated Luminous Efficiency >112lm/w

Lamp Rated Lumen output 31360 lm (Lumen tolerance +/- 5%)

Color Rendering Index Ra>70

Color Temperature 3000K, 4000K, 5000K or 5700K

Photometric Type 30, 45, 60 degrees

Optimal Operating Temperature 25℃

Storage Temperatures ‘-40℃~+50℃

Working Environment Between-40°C~+50°C, 10%~90%RH

Total Harmonic Distortion < 10%

Lumen Maintenance > 100, 000 hours -L70, @25 ºC (77 ºF)

Body and Shell Materials Stretched Aluminium Alloy

IP Rating IP66 with test report

Certification CE, ROHS

Optional Function 1-10V DC Dimming

Warranty 5 years

PACKING DETAILS

Fixture Dimension 634 x 192 x 291 mm

Fixture Weight 14.0 kg / 30.9 lbs

Packing Dimension 680 x 225 x 380 mm

Packing Weight 15.5 kg /34.2 lbs

Founded in 2005, Hangzhou ZGSM Technology Co., Ltd is located in Linglong Industrial Park, the west of Hangzhou.

ZGSM is a hi-tech and private Enterprise devoted to R&D, producing and selling of high quality LED indoor/outdoor lights, LED traffic lights, solar powered LED lighting system and so on.
