3in1 3w Rgb Smd Led - China

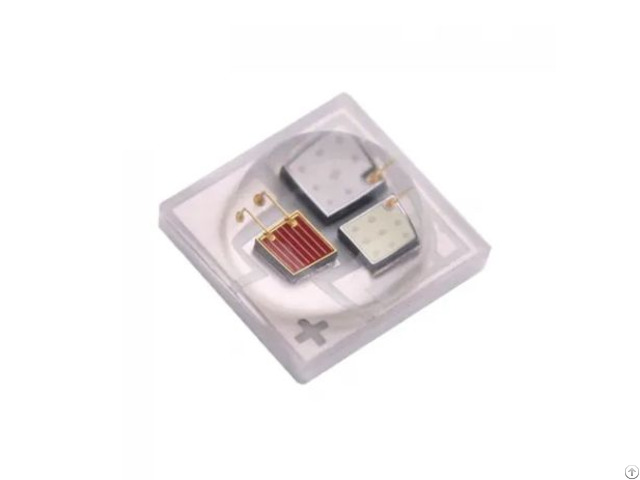

3in1 3W RGB SMD LED

RGB LED is a common intersection of the three primary colors for imaging purposes to achieve the effect of white light.

3535RGB is a kind of LED SMD light beads that emit red, green and blue, forming various colors under the combination of different currents, called full color.

Moonleds 3in1 3W 3535 RGB LED has stable quality because of its high thermal conductivity and high light transmittance in packaging structure.

In the optical design, it solves the application of opto-electronic products for more customers; The 3535 RGB LED has a very good compatibility, operability.

The design of small distance between chips makes the LED excellent color mixing performance.

It has a high advantage over the application for stage lighting, outdoor lighting, landscape lighting, etc.

Features of 3535 SMD RGB LEDs

• High cost performance

• Ceramic base

• high thermal conductivity

• Reflow soldering available

• Excellent color mixing performance

Buy 3535 RGB LED integrated driver chip from Shenzhen Moonleds to make your own LED strip light.

Although the 3.5mm x 3.5mm 3535 RGB SMD LEDs are very easy to solder but still need extra care and attention.

SMD LED RGB 3535 3W Specification

Color Wavelength(nm) Voltage (V) Current (mA) Lumen (LM) Part Number

RGB 620-630 2.0-2.6 350 50-70 MN-S3535RGB3 520-530 2.8-3.5 350 110-130 455-465 2.8-3.5 350 20-30
