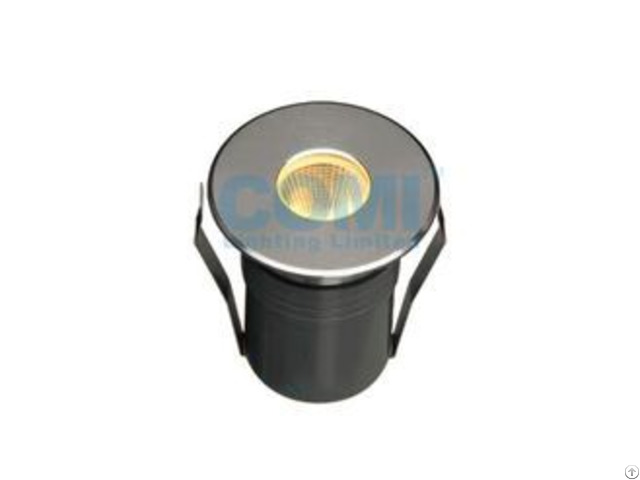

Mini Type 5w Cob Led Inground Light Round Front Ring Install By Mounting Sleeve - China

R2IR0125 24VDC or 110 -240VAC 1 * 5W Mini COB LED Inground Light Round Front Ring Outdoor Rated IP67 Features and Benefits:

1 - COB LED as its light source

2 - Small size lamp body dia.

70(Front Ring)*H82mm*Dia52mm(housi ng), or Square 66*66mm (Front ring) *H82mm*Dia52mm(housing);

3 - Install by Spring and PVC mounting sleeve(included)

4 - Square or round front ring made of Stainless steel SUS 316L# and lamp housing made of Die-casting aluminum;

5 - 7mm thickness Step tempered glass Light Window, Full area=633kgs Glass pressure capacity.

Material Specification:

Housing: 12# Die-casting grey powder coated aluminum.

T=60-80µm Adhesion of ISO class 1/ASTM class 4B

Front ring: Stainless steel SUS 316L#

Light Window: Step tempered glass.

T=7mm

Glass pressure capacity: Full area=633kgs

Reflector: Optical Reflector efficiency≥90%

Cable gland: IP-68 PG-9 PVC

LED: Multi chip on board LED

PCB: Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w /mk

Driver: Constant current output Operating temperature: -20℃~40℃

Power cable: H05RN-F 2×1.0mm² L=0.5M (low voltage) H05RN-F 3×1.0mm² L=0.5M (high voltage) Mounting sleeve: 065# PVC
