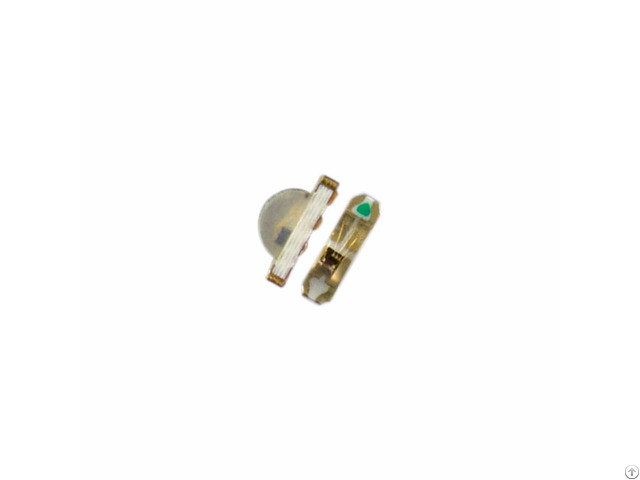

Side View Smart Rgb Led Chip Lc8812b 3210 - China

price: check with company for price

Model No: LC8812B-3210

3.2x1.0x1.5mm Top SMD Type 0.2Watt Power tegrated

light source Intelligent control LED Emitting color: digital RGB full color

View angle: 90degree side emitting/side view 1led 1pixel, main application for Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube, LED appearance / scene lighting, a variety of electronic products, electrical equipment etc.

LED Feature: *Top SMD internal integrated high quality external control line serial cascade constant current IC;

*control circuit and the RGB chipin SMD 3210 components.

to form a co mplete control of pixel, color mixing uniformity and consistency;

*built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform

distortion will not guarantee a line;

*The built-in power on reset and reset circuit, the power does not work;

*gray level adjusting circuit (256 level gray scale adjustable);

*red drive special treatment, color balance;

*line data transmission;

*plastic forward strengthening technology, the transmission distance between two points over 10M;

*Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec
