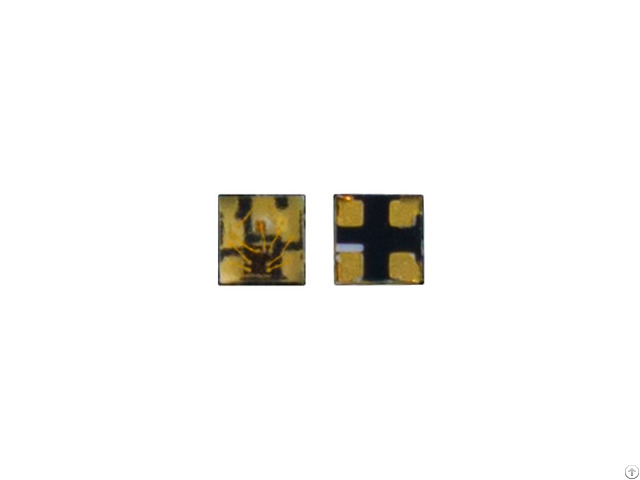

Smart 1515 Rgb Smd Led - China
price: check with company for price
1.5x1.5x0.78mm Intelligent control SMD LED with IC inside programmable,3-in-1 digital rgb color, 5V 15mA oer led.
Applications:
● Full-color module, Flexible led Strip ,Rigid led strip
● LED decorative lighting, LED Panel a variety of electronic products, electrical equipment etc
Main Feature:
● SMD internal integrated high quality external control line serial cascade constant
current IC;
● Control circuit and the RGB chip integrated in SMD 1515 components, to form a
complete external control pixel, make the color mix uniformity and consistency;
● Built-in data shaping circuit, a pixel signal is received after wave shaping and output
waveform distortion will not guarantee a line;
● Gray level adjusting circuit (256 level gray scale adjustable);
● Red drive special treatment, color balance;
● Single-line data transmission for unlimited cascade
● Plastic forward strengthening technology, the transmission distance between two points
over 10M;
● Data transmission frequency can reach 800 Kbps, when the refresh rate of 30 frames
per sec,the number of cascades is not less than 1024 points.
Company Contact:
- Posted By: Shenzhen LED Color Opto Electronic Co., LTD
- Phone: +86 13670216169
- Address: 5F, Da Dongming Science and Technology Park, Yuequn Road,Gongming Town,Guangming New District,Shenzh, SHENZHEN , China
- Email:
Published date: December 29, 2019 - Modified date: December 29, 2019
- Business Description: Shenzhen LED Color Opto Electronic Co., Ltd.was established in 2012, we are a LED company integrating R&D, production, sales and service.
Mainly engaged in the production of high-quality addressable LED chips and flexible LED lighting strips
