Smd 3528 Rgb Led - China

price: check with company for price

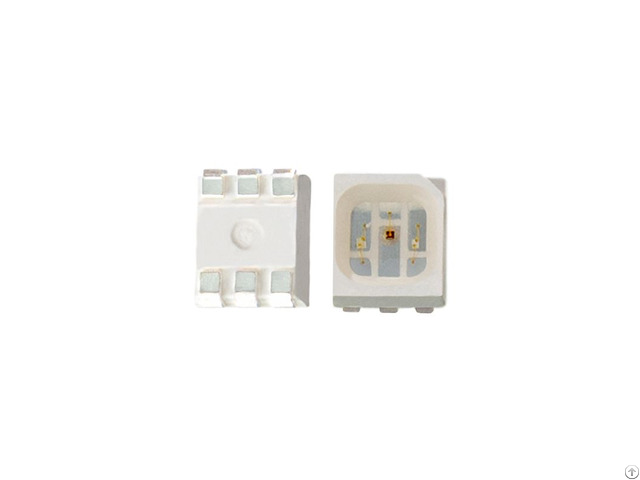

Smd 3528 Rgb Led

Products Photos Catalog Smd 3528 Rgb Led Photos Catalog

Model：LC-3528RGB

Viewing angle: 120℃

The materials of the LED dice is

InGaN/AlGaInP

Size: 3.5mm×2.8 mm×1.6mm SMT-LED

Emitted Color: RGB

Lens Appearance: Water Clean

RoHS compliant lead-free soldering

compatible Forward current: 20mA*3 per led

Forward voltage:

Red 1.9-2.1v

Green 3.0-3.2v

Blue 3.0-3.2v Wavelength: Red 620-625nm

Green 517-520nm

Blue 467-470nm Luminous intensity:

Red 600-800mcd

Green 1600-1800mcd

Blue 400-500mcd Applications :

LCD Back Light;

LED Light Bar;

flexible led strip;

Advertisement;

Interior automotive lighting.


Company Contact:


  • Phone: +86 13670216169

  • Address: 5F, Da Dongming Science and Technology Park, Yuequn Road,Gongming Town,Guangming New District,Shenzh, SHENZHEN , China

  • Email: Email

Published date: December 29, 2019

  • Business Description: Shenzhen LED Color Opto Electronic Co., Ltd.was established in 2012, we are a LED company integrating R&D, production, sales and service.

    Mainly engaged in the production of high-quality addressable LED chips and flexible LED lighting strips
