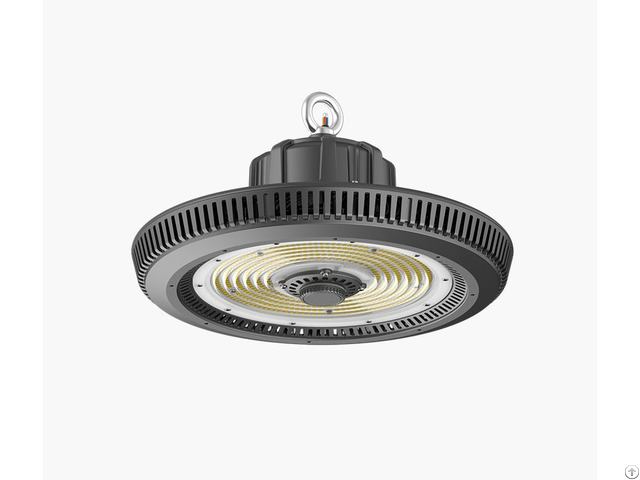

Ufo Smart High Bay Light 100w 150w - China

1 - CE FCC RoHS ERP PSE certificated

2 - Waterproof smart modules connected available (IR sensor, radar sensor, BT mesh control, Wi-Fi Control)

3 - Original patented design product

4 - Designed with insulation to prevent electric shock.

5 - Designed with air convection cooling, it operates at a lower and safer temperature

6 - Equipped with high-efficiency IC constant driver

7 - Energy-saving LED lighting for industrial projects

8 - Waterproof IP65, 5 years warranty

9 - 100W 150W power optional

10 - Mainly used in factories, warehouses, garages, processing workshops, shopping malls, convention centers, sports venues, etc.

Insulation and waterproof design

IP65 and IK10 rate, insulated safety Insulated high temperature resistant housing, safe from electric shock

Polycarbonate PC insulation housing, melting point up to 280 degree

Toughness, strong oxidation resistance and corrosion resistance Efficient heat dissipation design

Air convection cooling with temperature control protection Aerodynamic air intakes are designed at the bottom and around the lamp body based on the principle of hot air flowing upwards.

The incoming cold air circulates in the lamp body to cool down and is discharged through the heat dissipation vents designed on the outer and top.

A large amount of hot air to achieve the purpose of high-performance heat dissipation High density aluminum heat sink

Built-in aviation grade high purity aluminum radiator Using large area 6063 high-purity aviation aluminum thermal conductivity up to 3.0 or moreHeat dissipation speed is fast and lightweight

The use of polycarbonate PC insulation housing and high purity aluminum, its material characteristics of high density and low purity to achieve light weight Datasheet

Guangdong LUFUL Lighting Technology Co., Ltd.

UFO Smart High Bay Light

Spec Sheet Revision Date: 2024-12-01

Model: LF-UFO-Q-100-150W

Electricity Parameter

·Rated Power: 100W 150W

·Working Power: 100W 150W(±5%)

·Input Voltage: AC100-277V

·Freqency Range: 50/60Hz

·Power Factor: ＞0.9

·Power Efficiency: 88﹪

Optical Parameter

·Light source configuration Sanan

·Color Temperature: 3000K 4000K 6500K

·Led Initial Flux: 18000-27000lm

·Luminous Efficiency: 180LM/W(±5%)

·Light attenuation standard ≥25000

·Power configuration: Non-isolated Smart IC Driver

·Color Rendering Index: Ra＞80

·Luminous Anlge: 60° / 90° / 120°

Lamp Specification

·Lamp Material: PC with aluminum heat sink

·Lampshade Material: Lens Cover

·Lamp Colour: Black

·Installation: Chain Hanging / Mounting Bracket / Reflector / Screw Converter

·Lamp Weight : 2.75KG

·Overall Dimension : φ333*195mm

·IP Grade : IP65

·Working Temperature : —20℃—60℃

·Working Life-span : 35000H LUFUL is your trusted source for industrial lighting solutions, offering high-performance products at competitive prices.
