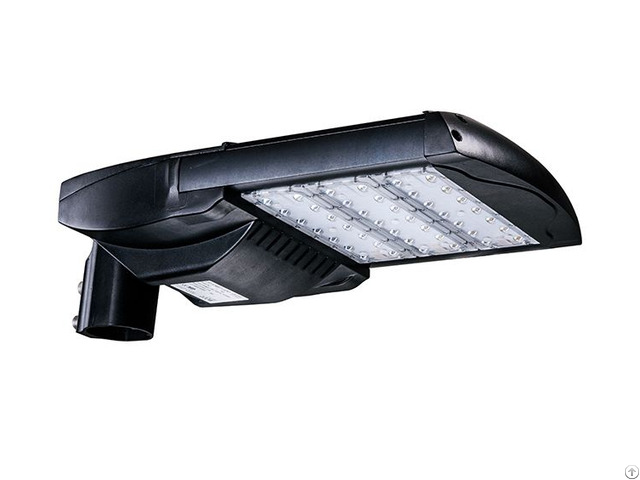

Zgsm Ld120h4 Modular Design Led Street Lanterns - China

Series H4 LED Street Light

Model：

ZGSM-LD120H4

Application：

Street | Road | Highway | Parking lot | Bridge | Path

LED Street Light Supplier: Hangzhou ZGSM Technology Co., Ltd

KEY FEATURES

1 - Wide power range: 35W~320W.

2 - Special circuit design, single LED’s damage won't affect others' normal work.

3 - Modular design and tool-less open for easy replacement and maintenance.

4 - Power-off protection makes the power automatically off when fixture is opened (optional).

5 - Level bubble makes it easy for the installer to adjust the position of the lamp.

6 - Breather ensures air balance inside and outside of driver box of the lamp.

7 - High Lumen output up to 165lm/ w with high quality LED chips.

8 - 1000 hours salt spray test report.

9 - Vertical and horizontal installation both available, adjustable by ±15°in both directions.

10 - Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11 - Designed to last at least 100, 000 hours at L70.

12 - Multiple lighting distributions are available.

13 - CE, ROHS, GS, CB, LM80, FCC, IP66, IK10

14 - 7 years warranty SPECIFICATIONS

Specifications

Model ZGSM-LD120H4

LED Brand Lumileds 3030/5050

Driver Brand Meanwell or Inventronics

Norminal Wattage 120W

LED Module Quantity 3 modules

Input Voltage 100-240/277VAC/DC24V

Power Efficiency >90%

Power Factor >0.95

Lamp Rated Luminous Efficiency 140-165 lm/w

Lamp Rated Lumen output 16800-19800 lm (Lumen tolerance +/- 5%)

Color Rendering Index 70( 80 optional)

Color Temperature 3000K or 4000K or 5000K or 5700K

Photometric Type Type I Medium;Type II Medium;Type III Medium, TypeV, Short

Optimal Operating Temperature 25°

Storage Temperatures -40°C~50°C

Working Environment Between-40°C~+50°C, 10%~90%RH

Total Harmonic Distortion < 10%

Lumen Maintenance > 100000 hours -L70, @25 ºC (77 ºF)

Wind Index Force 12

Body Die-cast aluminum Housing

Cover PC lens

Pole Fitter Diameter 60mm ( 50mm optional)

Rating IP66 IK10

Protection Class I ( Class II optional)

SPD 10KV (20KV optional)

Certification CE, ROHS, ENEC, CB, LM80, LM79, FCC, IP66, IK10

Dimming Options 1-10V or DALI or PWM or Timer

Control Options Photocell or Motion sensor or Smart control

Color Options Silver or Black

Warranty 7 years PACKING DETAILS

Packing Details

Fixture Dimension 577 x316 x136 mm

Fixture Weight 7.3 kg /16.1 lbs

Packing Dimension 630x370 x200 mm

Packing Weight 8.6 kg /19.0 lbs
