Sell Vocational Electronic Training System Xk Elc01x Basic Circuit Experiment Kit - China

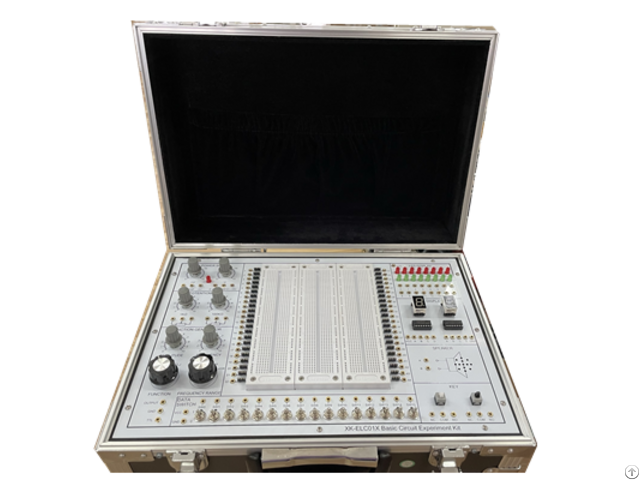

XK-ELC01X basic circuit experiment kit includes experiment power circuit, signal source circuit, input switch, output display circuit and bread board.

It adopts jack type, easy for student to do the experiments of artificial circuit and digital circuit.

MAIN CONFIGURAITON

Panel configuration

Power circuit module includes DC±5V voltage source, DC 0-±15V adjustable voltage source

Signal source circuit module: output 1-100KHz square wave, triangular wave, sine wave, frequency can be adjusted: 1-10Hz, 10-100Hz, 100-1KHz, 1K-10KHz, 10K-100KHz, amplitude 0-10V adjustable.

Potentiometer: 1 piece of 1KΩ, 1 piece of 100KΩ, lead to the ports.

Keys: 1 piece of self-lock key, 1 piece of non self-lock key

Switch: 16 pieces of toggle switch

Loudspeaker: 8Ω0.5W, lead to two input ports

LED display: 8 pieces of red LED, 8 pieces of green LED, common anode connection.

Nixie tube: two pieces common cathode nixie tube, two ways BCD code input.

Bread board: 2500 holes, 2.54mm distance between holes, 150*160mm

Accessories

Power line: 1 piece

Bread board connection wires: 100 pieces

K2 connecting wires: 10 pieces

Manual: 1 piece
