Teaching Apparatus Pure Electric Vehicle Drive System Motor Demonstration Bench - China

Quick Details

Origin: Hebei, China

Brand Name: BJZY

Warranty: 1 year

Service: OEM customization

Category: Teaching

MOQ: 1 set

Packing: wooden box

Packaging And Delivery

wooden packaging

Delivery time: 15 to be negotiated

Product Description: 1 - The training platform focuses on the directional development of new energy vehicle motors and control systems, and is equipped with vehicle motor controllers and high-voltage power distribution boxes.

It can realize the operation status demonstration and routine signal detection of the permanent magnet synchronous motor.

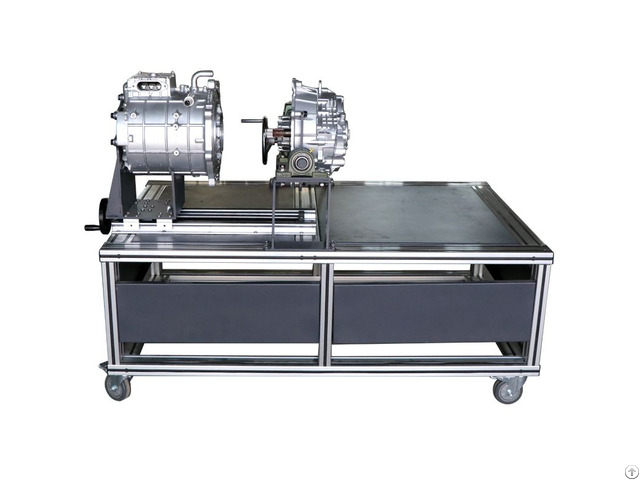

2 - Product composition: powertrain disassembly and assembly training platform, intelligent information collection and detection box, drive energy supply platform, three-phase high-voltage connection cable, low-voltage communication connection cable and other important components.

3 - The motor type is a three-phase permanent magnet AC synchronous motor.

The maximum output torque of the motor is 310N.

m, the rated torque is 160N.

m, the maximum input power is 160kW, the rated power is 80kW, and the maximum output speed is 12000rpm.

4 - The transmission is a single-speed fixed gear ratio transmission, the main reducer reduction ratio is 9.266, the first-stage transmission ratio is 3.217, the main reduction transmission ratio is 2.880, and the distance between the center of the motor shaft and the center of the differential is 239mm.
