Silicone Glass Fibre High Temperature Resistant Sleeve - China

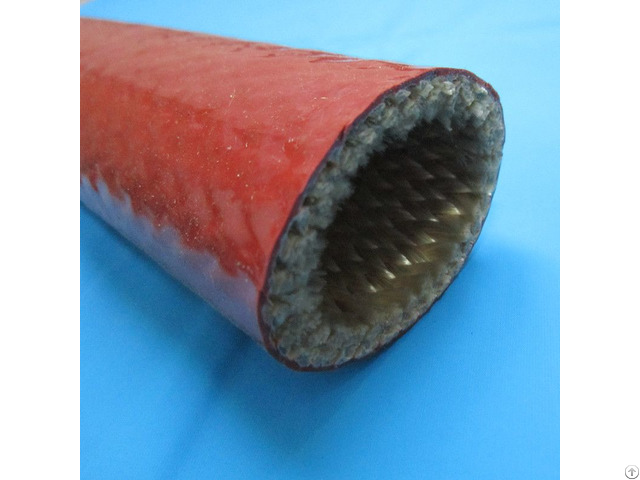

HFRS heavy duty fire sleeve is a perfect solution to protect cables, wires and hoses with very high temperature.

Made of braided texturized fiberglass yarns in a flexible substrate, then coated with a high grade silicone rubber.

Thicker, denser inner glass fiber than IFRS industrial grade fire sleeve gives higher insulation values, increased strength and enhanced abrasion resistance.

Features: It offers excellent short term flame protection and great insulation properties for high temperature.

Resistant to hydraulic fluids, oils and fuels and can protects against molten splash and flames.

Application: It’s mainly used in steelworks, glass and ceramic industry, in railway and some other fields.

Used to protect fuel lines, hydraulic and oil lines from heat and to prolong the life of wiring and hoses in case of fire so that critical systems can function longer.

Specifications: Datasheet

Part Number Normal Inside diameter Meter for spool

Inches mm Dash # Meter

HFRS-35 1 3/8 35 -22 20

HFRS-38 1 1/2 38 -24 20

HFRS-41 1 5/8 41 -26 20

HFRS-44 1 3/4 44 -28 20

HFRS-48 1 7/8 48 -30 20

HFRS-51 2 51 -32 20

HFRS-57 2 1/4 57 36 20

HFRS-60 2 2/5 60 -38 20

HFRS-64 2 1/2 64 -40 20

HFRS-67 2 5/8 67 -42 20

HFRS-70 2 3/4 70 -44 20

HFRS-73 2 7/8 73 -46 20

HFRS-76 3 76 -48 20

HFRS-83 3 1/4 83 -52 20

HFRS-89 3 1/2 89 -56 20

HFRS-95 3 3/4 95 -60 20

HFRS-102 4 102 -64 20

HFRS-114 4 1/2 114 -72 20

HFRS-121 4 3/4 121 -76 20

HFRS-127 5 127 -80 20

HFRS-152 6 152 -96 20 Technical Datasheet

Material Silicone, fiberglass

Working temperature -40℃ - +260℃

Flammability VW-1

Melting point +1650℃

Standard Color Iron oxide red

MOQ 20 meter each size

Cutting tool Scissors Notes: The part NO.

will be by BK for black color, GR for gray color, OR for orange color, BL for blue color.

Special thickness upon request.

Special length or packing upon request.

Customs LOGO upon request.
