100base T Single Port Tab Down Rj45 Connector Trj0011abnl - China

price: 0.60 Dollar US$

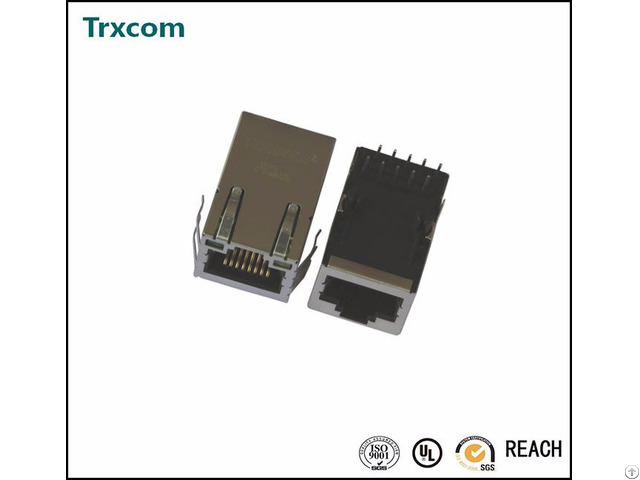

100base T Single Port Tab Down Rj45 Connector Trj0011abnl

Products Photos Catalog 100base Port Tab Rj45 Photos Catalog

Trxcom p/n TRJ0011ABNL=Halo p/n HFJ11-2450E-LS12RL

10/100M Single Port Tab-Down 21.3mm Length RJ45 Connector TRJ0011ABNL

100Base-T Transformer

With Led and EMI-finger

Single Port

Led: Green & Yellow

Tab: Down

Pin type: Solder

Length: 21.3MM

UL, RoHs, Reach, ISO9001: 2008

Free sample available

1 - Meets IEEE 802.3 specification

2 - Connector Materials:

Housing Material: Thermoplastic PBT+30%G.

F UL94V-0

Contact Material: Phosphor Bonze C5210R-EH Thickness=0.35mm

Pins: Brass C2680R-H Thickness: 0.35mm

Shield: SUS 201-1/2H Thickness=0.2mm

Contact plating: Gold 6 micro-inches min.

In contact area.

3 - Wave solder tip temperature: 265℃ Max, 5 Sec Max

4 - UL Certification: File Number E321120

ELECTRICAL SPECIFICATION AT 25℃

1 - Turn Ratio (±3%)

TX=1CT: 1CT RX=1CT: 1CT

2 - Inductance OCL:

350uH MIN @ 100KHz 0.1V 8mA DC Bias

3 - DCR: 1.2 Ω MAX

4 - Insertion Loss:

-1.0 dB MAX @ 1-100MHz

5 - Return Loss:

- 18dB MIN @ 1-30MHz

- 15dB MIN @ 30-60MHz

- 12dB MIN @ 60-100MHz

6 - Cross talk:

- 40dB MIN @ 30MHz

- 35dB MIN @ 60MHz

- 30dB MIN @ 100MHz

7 - Common Mode Rejection:

- 30dB MIN @ 1-100MHz

8 - Hipot Test: 1500Vrms

9 - Operation Temperature Range: 0 ℃ TO 70℃


Company Contact:


  • Phone: 86--13554918626

  • Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen , Guangdong , China

  • Email: Email

Published date: August 23, 2016 - Modified date: August 23, 2016

  • Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic, Lan Transformer, Audio transformer.

    The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.

    1) 10/100/1000M LAN pulse transformer and filter

    2) RJ45 connector with 10/100/1000M magnetic

    3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer

    4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
