Fakra I Male Thru Hole 4 Pcb Solder Right Angle Connector S - China

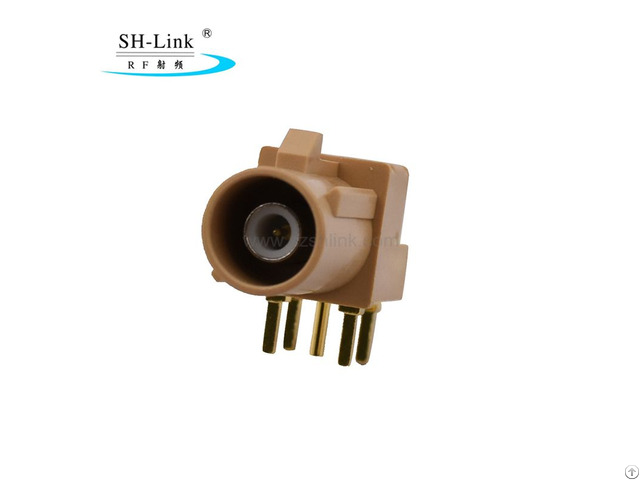

Fakra I Male Thru Hole 4 PCB Solder Right Angle Connector SHM.

900.0002-1 - I

Major characteristics:

Double-locked, fool-proofing assembly with the color and the structure

The connector is be protected by the cap .

Easy to assembly

Many difference between the connector and the cap.

Fakra Male Thru Connector The product technical characteristics:

Body: Brass, Ni-plated

Socket: beryllium-copper, Gold-plated

Pin contact: Brass

Insulator: PTFE

Crimp ferrule: brass, Ni-plated

O-ring: beryllium-copper

Shell: PA66+30%GF Waterproof FAKRA male connector China Technical characteristics

Impedance: 50Ω

Frequency Range: 4GHz

Withstanding Voltage: 1000V(RMS)

Contact resistance:

Center contact: ≤ 20m

Outer contact: ≤10m

Insulation: ≥1, 000MΩ

VSWR: DC - 2GHz<1.2 FAKRA Male Connector for PCB (R/A) Mechanical characteristics:

Assembly: locked

Durability: ≥ 500 cycles

Temperature: - 40 - +85°C

Company Contact:

• Posted By: Shenzhen Sihanming Technology Co.,Ltd.

• Phone: 075527339472

• Address: C Building,Liyue Industrial Park,4th Industrial Park, Fuyong Town,Baoan District, shenzhen , guangdong , China

• Email:

• Website: https://www.shmlink.com/

• Business Description: Shenzhen Sihanming technology Co., LTD（Shenzhen Sihan Communication Technology）was established in 2006, is a company that sets professional design, development, production, sales as one .

  Our main products are RF coaxial connectors,RF jumper ,MMCX connectors for earphone,test connector for Mobile phone, fakra automotive connectors, High frequency low loss test cable,high frequency test RF adapter and RF antennas.

  In the same time, we are the agent of Japanese I-pex .

  2010: Company independently research and develop for automotive connector Fakra series products ,and formally put into production.

  and get several patent s of appearance and utility model .

  2012: Shenzhen Sihanming Technology Co., Ltd passed ISO9001 .

  2013: Shenzhen Sihanming Technology Co., Ltd passed IATF16949 .

  2015: The LOGO "SH-Link" register successfully.

  In the same year our company was identified as" high-tech enterprise by "shenzhen science and technology innovation and technology commission “ and issue a certificate.

  products and applications

  1 - These products are produced according to the international standard of SMA, SMB, SMC, BNC, TNC, N, MMCX, MCX, SSMA, SSMB and Fakra series etc.

  All of them are conform to the technical stands of IEC, DIN&MIL-C-39012 -

  2 - 6G, 20G, 40G high frequency low loss test cable and test adapter .

  3 .

  FAKRA automotive connectors, MMCX connectors for earphone, test connector for Mobile phone, IPEX series.
