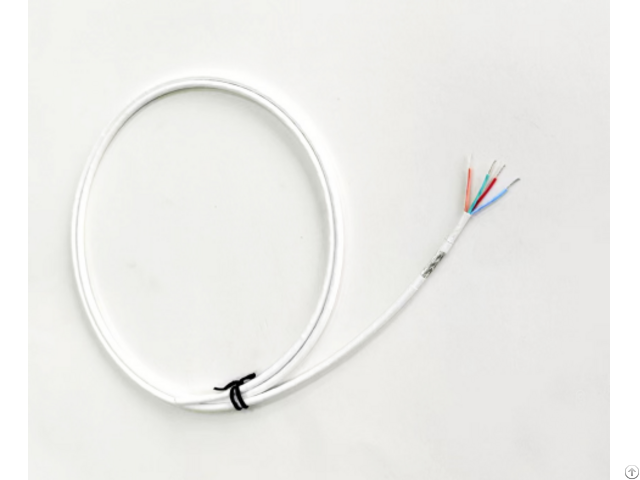

Lsrc2003r Aerospace Mil 1394b High Speed Data Bus Cable - China

Cable applications: flight control, mission systems, data bus, avionics network, propulsion control Category: MIL-STD-1394b high-speed bus series Electrical & Physical Properties Impedance 110±6

Attenuation 100MHz 3.0(db/10m)

Attenuation 250MHz 4.70(db/10m)

Attenuation 500MHz 6.70(db/10m)

Attenuation 1000MHz9.70(db/10m)

Delay Difference 11.5

Delay 4.20

Capacitance ≤45

Dielectric withstand -Conductor to Conductor 1.5

Dielectric withstand - Conductor to Shield 1.0

Minimum Bending Radius 32

Insulation Resistance ≤5000

Operating Temperature Range -55~165

Weight 23

Company Contact:

• Posted By: ShenZhen Light Speed Cable Technology Co.ltd

• Phone: +86(0755)2837 3675

• Address: 4nd floor, Building L, JingTie Ind. District, No.49th, Changjiangpu,Road, Yuansan,Longgang, shenzhen, , Guang Dong, China

• Email:

• Website: https://www.lightspeedtm.cc/

• Business Description: Light speed cable technology Co.

  Ltd,

  Military grade cable supplier

  Aerospave wire manufacturer

  custom il-spec wire assembly

  professional designs and manufactures high performance cables for RF and High data rate cable transmission applications.

  Our products include: Aerospace high speed data cables(Mil-1394b high speed bus series, Mil-1553b high speed bus series.

  aviation high speed ethernet series, aviation high speed LD-PTFE wrapped cable,LVDS high speed data cable for aviation)low loss, phase stable coaxial cable(phase stables coaxial cable, low loss coaxial cable, RG coaxail cable), Aerospace high speed data cable assemblies、RF coaxial cable assembly, Multi-channel bundled assemblies, precision test armor assemblies, phase stable coaxial cable assembly, aviation ethernet assemblies)

  We have produce and R&D Military Grade High Speed data cable and cable assembly experience over 14 years.

  Our products have been widely used in the field of testing system, telemetry , remote sensing, aerospace field, flight control, data bus, defense, fighter, microwave weapon commuication/satcom, military and commercial application, ground satellite station, antenna and feeder, signal interconnector, flight entertainment, medical application.

  Light Speed Cable products offer advantages such as low attenuation,low VSWR,and High speed .

  The company's strong R&D team and production department possess superior domestic technology, ensuring reliable performance for customers and providing complete solution

  Light Speed Cable is quality and service oriented manufactured dedicated to provide reliable products to meet your applications, Lightspeed cable is quality certified according to GJB 9001C-2017 and GB/T 19001-2016/IS0 9001: 2015 -

  You can choose our standardized product in our website (www.

  lightspeedtm.

  cc) or customized as your requirement.
