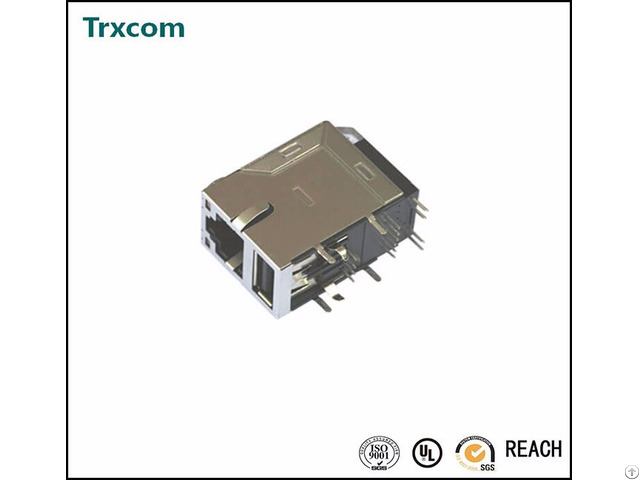

Rj45 Connector Single Usb Combo Tab Up With Led Trju3101ahnl - China
price: 0.85 Dollar US$
10/100Base-T RJ45 Connector
Single RJ45 Port single usb combo
Tab Up
With Led with emi-finger
Led: Green & Yellow
Length= 29.00mm
Pin type: the solder
UL, RoHs, Reach, ISO9001: 2008
Free sample available for testing
1 - Meets IEEE 802.3 specification
2 - Connector Materials:
Housing Material: Thermoplastic UL94V-0
Contact/ Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.
In contact area.
3 - Wave solder tip temperature: 260℃ Max, 5 Sec Max
4 - UL Certification: File Number E321120
ELECTRICAL SPECIFICATIONS AT 25℃
1 - Turn Ratio (±3%)
TX=1CT: 1CT RX=1CT: 1CT
2 - Inductance OCL:
350uH MIN @ 100KHz 0.1V 8mA DC Bias
3 - DCR: 1.2Ω MAX
4 - Insertion Loss:
-1.0 dB MAX @ 1-100MHz
5 - Return Loss:
- 18dB MIN @ 1-30MHz
- 15dB MIN @ 30-60MHz
- 12dB MIN @ 60-100MHz
6 - Cross talk:
- 40dB MIN @ 1-30MHz
- 35dB MIN @ 30-60MHz
- 30dB MIN @ 60-100MHz
7 - Common Mode Rejection:
- 30dB MIN @ 1-50MHz
- 20dB MIN @ 50-150MHz
8 - Hipot Test: 1500Vrms
9 - Operation Temperature Range: 0 ℃ TO 70℃
Company Contact:
- Posted By: Shenzhen Trxcom Electronics Co.,Ltd
- Phone: 86--13554918626
- Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen , Guangdong , China
- Email:
Published date: August 23, 2016
- Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic, Lan Transformer, Audio transformer.
The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
1) 10/100/1000M LAN pulse transformer and filter
2) RJ45 connector with 10/100/1000M magnetic
3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer
4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
