Atten Zt 660 150g 661 200h Digital Soldering Station For Pcb Repair - China

Description:

ATTEN ZT-660-150G 150W and ZT-661-200H 200W Auto-Feed Soldering Station with solder wire automatic tin dispensing system for mobile phone/tablet/electronic circuit board BGA chip welding repair.

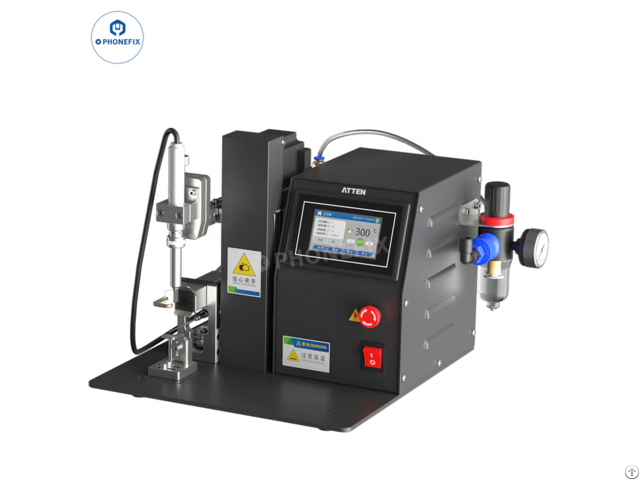

ATTEN ZT-661-200H single-axis semi-automatic soldering station and ZT-660-150G auto-feed soldering station suitable for PCB soldering and desoldering, one-handed operation, easy welding, improved work efficiency.

ATTEN ZT-661-200H Features:

1 - Soldering iron uses 200W high frequency eddy current heating, rapid heating, accurate control, ESD safe.

2 - PLC touch screen control, simple adjustment, easy operation.

3 - Metal heating handle, fast heating, heat storage, high temperature, resistance, rust and corrosion prevention, long service life.

4 - Automatic cleaning, high eficiency.

5 - Change different soldering tools in different occasions.

6 - With foot switch control mode and automatic control mode.

7 - Support RS-485 communication interface, the host mode can link to the ATTEN'S fume extractor.

ZT-660-150G Features:

1 - Automatic tin dispensing system, single handed operation, simple andeasy welding, improving work efficiency.

2 - Temperature control range from 80 °C to 500 °C, stable and accuratetemperature control.

3 - Anti static design can prevent damage to sensitive components due tostatic electricity.

4 - Adjustable amount of solder return to reduce waste of solder.

5 - The tin feeding speed and length can be set.

ZT-661-200H Specification:

Model: ZT-661-200H.

Voltage: AC 220-240V~50/60Hz (AC 110-120V~ 60Hz).

Power: 250W (±10%).

Temperature range: 80°C~500°C/176°F~932° F.

Temperature compensation: ±50°C.

User-defined user parameters: Support 10 groups of user parameter customization.

Work conditions: Temperature: 0°C~40°C; Humidity: < 85%RH.

Solder wire perforation function: Optional (standard without broken tin).

Overall dimension: 320(L)x350(W)x285(L)mm.

Weighe: ≈13.2 kg.

Air source component parameters:

Maximum working pressure: 1.0Mpa ( 10.2kgf/cm2).

Ambient and fluid temperature: -5~60°C (not frozen).

Suggested Oil: No.

1 turbine oil/lSOVG32.

Input air pressure: 0.058~0.85Mpa (0.51~8.7kgf/cm2).

Handle parameter:

Item No: ZP-200HG.

Power: ≥200W.

Soldering tip: T511G-U(8.0*2.0).

Heater: HS-200H.

ZT-660-150G Specifications: Model: ZT-660-150G.

Rated operating voltage: AC 220-240V~50160Hz (AC110-120V~60Hz).

Power: 180W(±10%.

Temperature range: 80℃~500℃.

Temperature compensation: ±50℃.

User parameter customization: Support 10 sets of user parameter customization.

Tin breaking function: Optional (standard without broken tin).

Work conditions: Temperature : 0℃~40℃; Humidity: <85%RH.

Overall dimension: 275*180*117mm.

Weight: ≈4.1kg.

Handle parameter: Model: ZP-155G.

Power: ≥150W.

Heater type: T155 Series.

Line length: 100cm.

Dimensions: 183*21*30mm.

Weight(Net): ≈0.14kg.

ZT-660-150G Packging List:

1x Main unit.

1x Soldering Iron.

1x Soldering Iron Stand.

1x Solder Wire Stand.

1x Pedal.

1x Stand Cable.

1x Grounding wire.

1x Power cord.

1x User manual.

1x Certificate.
