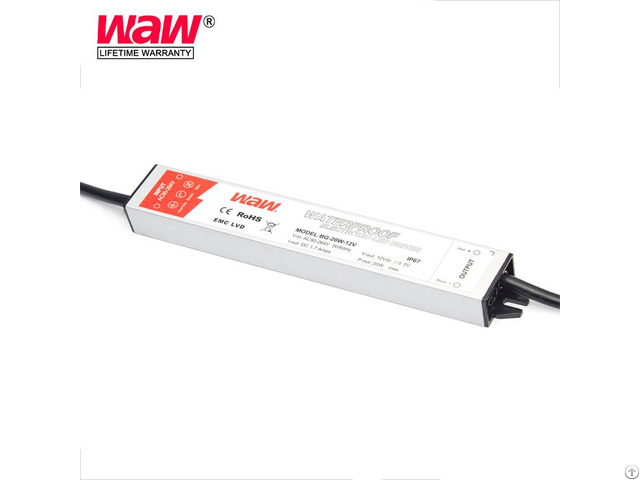

Ip67 20w Led Driver - China

20w led driver

model bg-20-12 bg-20-24 bg-20-36 bg-20-48

output dc voltage 12v 24v 36v 48v rated current 1.67a 0.84a 0.56a 0.42a current range 0 ~ 1.67a 0 ~ 0.84a 0 ~ 0.56a 0 ~ 0.42a rated power 20w 20.2w 20.2w 20.2w ripple & noise 100mvp-p 120mvp-p 120mvp-p 150mvp-p setup, rise, hold time 500ms, 20ms, 20ms/230vac

input voltage range 85~264vac 120~370vdc frequency range 47 ~ 63hz efficiency 80% 81% 81% 83% ac current 0.55a/115vac 0.35a/230vac inrush current cold start 30a leakage current <0.5ma/240vac

protection overload 115 ~ 150% rated output power protection type : constant current limiting, recovers automatically after fault condition is removed over voltage 5.8~6.8v 28~32v 28~32v 55~64v protection type : shut off

environment working temp, humidity -20℃ ~ +60℃, 20% ~ 90% rh non-condensing storage temp, humidity -20℃ ~ +85℃, 10% ~ 95% rh non-condensing withstand vibration 10 ~ 500hz, 2g 10min/1cycle, period for 60min.

each axes

safety & emc safety standard design refer to ul1012, en60950-1, en61347-1, en-61347-2 approved withstand voltage i/p-o/p: 1.5kvac i/p-fg: 1.5kvac o/p-fg: 0.5kvac isolation resistance i/p-o/p, i/p-fg, o/p-fg: 100m ohms/500vdc emc standard en55015, en55022, en55024, en61000-3-2, en61000-3-3, en61547 approved

others mtbf 500k hrs dimension 182*29*30mm (l*w*h)

note 1 - all parameters not specially mentioned are measured at 230vac input, rated load and 25℃ of ambient temperature.

2 - ripple & noise are measured at 20mhz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3 - tolerance : includes set up tolerance, line regulation and load regulation.

contact us for more information.
