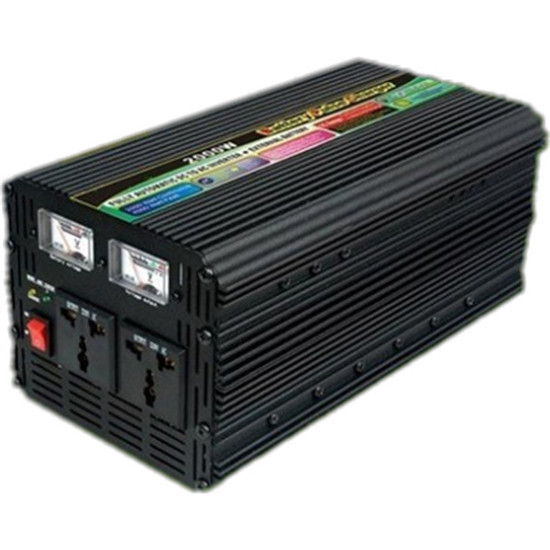

Sun Gold Power 1500w Peak 3000w Dc To Ac Stackable Inverter - China

It can convert DC Power to AC power.

It can be widely used

in vehicles, trains, vessels, solar energy and wind energy

generating electricity, mobile office, tele communic-

ations, police and other rush to deal with emergency

situations.

It is small size, less weight, and easy to use

and causes less noise while working.

It can be used

parallel, and also can be used singly.

The quantities of

stackable power inverters in one parallel system can be

composed freely in the range of 10pcs.

Features

Modified Sine Wave Output

Power ON/OFF Switch

Built-in Cooling Fan

Designed with advanced conversion technology and controlled

by MCU, is one of the most advanced DC to AC inverters

Small size, less weight, and easy to use and causes less

noise while working

Stackable setup & free combination (≤10pcs) or singly use

Soft-start and auto recovery / manual restart function

Buzzer alarm detection for faulty and protection function

Reverse polarity, LVP, OVP.

OLP, OTP, short circuit/ parallel

system security Protection

Easy installation, simple operation, low power consumption

Specification

Model：ST-1500

AC Voltage： 220V/230V/240V or 100V/110V/120V

Continuous Power: 1500W

Output Surge Power: 3000W

Converting Efficiency: >88%; >90%; >92%

Normal Input Voltage： DC12V ；DC24V ；DC48V

Input Voltage Range: 10~15V ; 20~30V ; 40~60V

Output Voltage: AC220V/230V/240V±5% or AC100V/110V/120V±5%

Output Frequency : 50Hz or 60Hz

Output Wave Form: Modified Sine Wave

No load Current: <0.15A

Input Low Voltage Alarm: 10.5±0.5V ; 21±0.5V ; 42±1V

Input Under Voltage Cut Off: 10±0.5V ; 20±0.5V ; 40±1V

Input Over voltage Cut Off: 15±0.5V ; 30±0.5V ; 60±1V

G.

W: 8.5kgs

Size: 420 mm *255 mm *100 mm

Working environment :

1 - Operation temperature: -10℃~40℃.

2 - Storage temperature: -40℃~85℃.

3 - Considerable air humidity should be less than 85%.

4 - No electrical conductivity, dust explosion, corrosion-

free gas in the working place.

5 - No shock and vibration in the working place.
