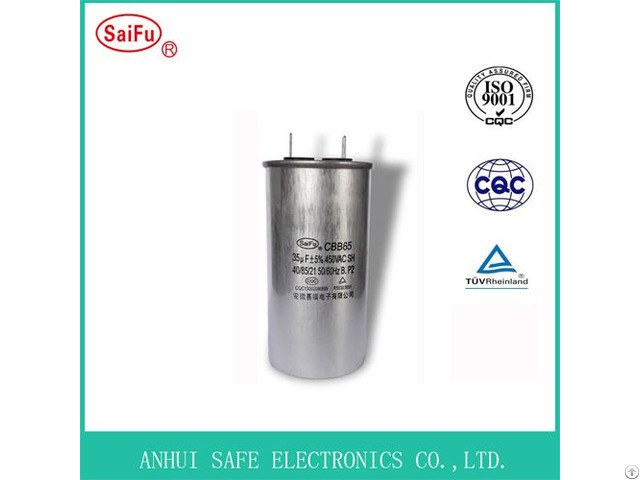

Cbb65 Ac Motor Air Conditioner Capacitor - China

Technical Specifications

Model NO.

CBB65 Capacitor

Type Air Conditioner Capacitor

Structure Single Capacitor

Manufacturing Material Polypropylene

Electrolyte Polypropylene Film

Reference Standards GB/T 3667.1(IEC60252-1)

Climatic category 40/70/21, 40/85/21

Class of operation Class B(10000h) Class C(3000h)

Class of safety production S2

Voltage range 220VAC 370VAC 440VAC 450VAC

Capacitance range 2~100UF

Capacitance tolerance ±5% ±10% ±15%

Dissipation factor 20*10-4(100Hz, 20ºC)

Test voltage terminal to terminal UTT 2 Un for 2 seconds

Test voltage terminal to case UTC (2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds

Insulation Resistance ≥3000MΩ.

uF(100Hz, 20ºC, 1min)

Altitude ≤2000m

Remain voltage when put into operation No more than 10% of rated voltage

Maximum allowed voltage No more than 1.1 times rated voltage

Maximum allowed current No more than 1.3 times rated current

Package Type Export Standard Carton for CBB65 Capacitor

Production Capacity 500, 000PCS/Month

MOQ 1PCS

Size Available

*Note: The Composite Capacitor can be also customized producing according to our customer's request.

***Product Description***

The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.

The elements of CBB65 Capacitor are tightly wind by high-velocity winders and canned in aluminum cases.

The second generation of machine anti-explosion design is selected ad blast -proof secure measure for our capacitors.

And the reliability is more affirmatively enhanced.

***Appearance & Application***

Installation Type: Through Hole

Shape: Cylinder or Ellipse

Capacitor Case: Aluminum Case

Application: CBB65 capacitor applied to General purpose, AC motor, Power, Lighting, Air Conditioner, High voltage, Automobile, Fan, etc.

CBB65 capacitor broadly applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency for family air conditioners and high power illuminators for the sake of power factor compensation.

***Packing&Delivery** *

Packing: Export Standard Carton Packing for Capacitors

Delivery Detail: 7~15 days after payment

Port: Shanghai or Ningbo ***Why you choose us?***

1 - Leading tachnology: Have a number of invention patents

2 - Stable quality: The company has the world's most advanced production equipment, and implement ISO9001 standard management.

3 - Reasonable price: Executive"Industrial products 10% Profit in the first.

"

4 - Large inventory: This is the guarantee of the timely delivery.

5 - Fexible production: User-specific products, starting from the next single.

6 - Internet Plus manufacturing: Through Ali, MIC, Baidu, GOOGLE, official website and community forum Sales.

7 - Cordial service: 7*24 hours online, prompt reply and timely delivery.
