Pps Pms Series Fast Discharge High Voltage Pulse Grade Film Capacitor For Fusion Energy - China

Product Overview

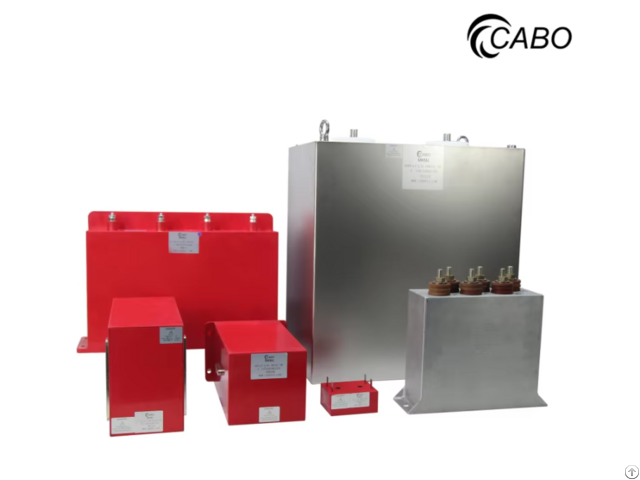

PMS/PPS Series Capacitor

High lifetime expectancy and high reliability is achieved by using ultra low defect design, highly standardized process, metallized polypropylene dielectric film incorporating an extended working temperature range and controlled self-healing capability.

Elements are wound on the latest precision edge controlled automatic winding machines.

High conductivity copper is used for low resistance internal connections.

Capacitors are finished in powder coated corrosion free metal or insulated cases and filled with an environmentally safe oil or dry leak free resin.

A very high specific energy level with 100% test specifically to meet the reliability demands.

Detailed product Description Product Name:

PMS/PPS Series Capacitor Features:

Custom designs Heavy peak current, High over-voltage Metal (PMS) / insulated cases (PPS) optional Controlled self-healing technology Metalized film(MKMJ) / Foil film type(MAM) Applications:

Military, Oceanography Power Electronics, Research Testing, Defence

PRODUCT SPECIFICATIONS

Capacitance

0.01~50000μF

Operating temperature

-40℃~+80℃

Capacitance tolerance

±5%(J);±10% (K)

Rated voltage

3000~100000V.

DC

Test voltage between terminal

1.1~1.5Un 2s

Test voltage between terminal/case

2Un, 1min

Insulation resistance

R*C ≥7500MΩ.

μF

Max altitude

＜2000m

Flame resistance

UL94V-0

Energy

100~100000J
