Arje 0032 One Port Rj45 With Usb Magnetic Jack - China

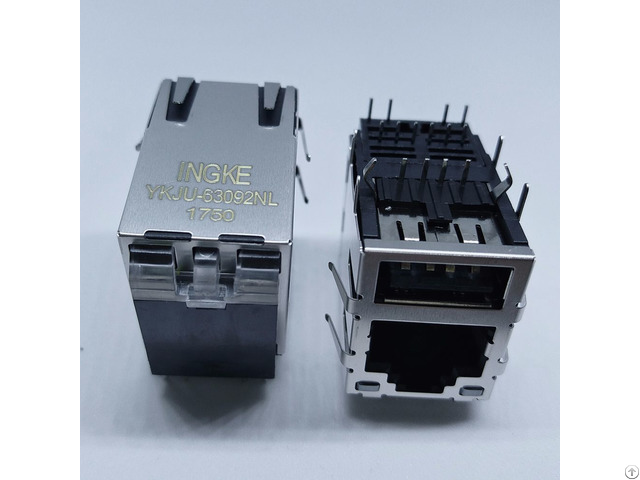

Ingke YKJU-63092NL 100% cross ARJE-0032 1 Port RJ45 with USB RJ45 Magnetic Jack Part Number : ARJE-0032

Made in China: YKJU-63092NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45 with USB

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green, Orange - Yellow

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features: Board Lock

Tab Direction : Up

Contact Material : Copper Alloy

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

ARJE-0031 ARJE-0029 ARJ-169 ARJE-0027 ARJ-148 ARJ-196 ARJE-0025 ARJ-139 ARJ-199 ARJ-150B ARJ-205 ARJ-202B ARJ-202C ARJ-202 ARJ-150A ARJ-150C ARJ-128
