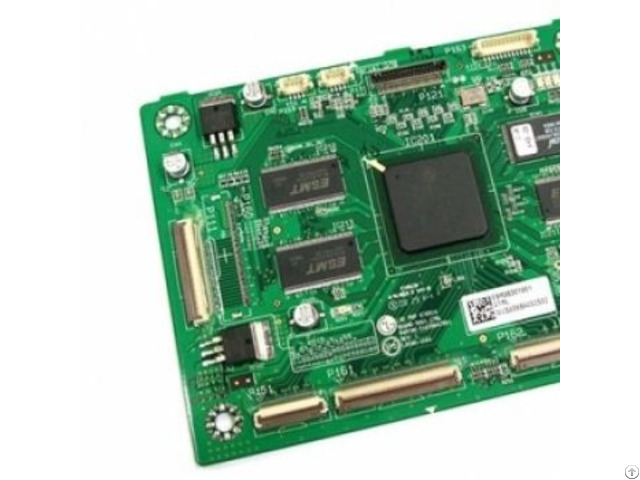

Customize Hdi Rigid Pcb Circuit Board From China - China

PaymentTT/WU/PAYPAL/L/C/D P

Delivery7~15 DAYS

OriginCHINA

Minimum Order10 PCS

PackingCARTON

InspectionQC

SamplesCharge

Sample PriceUS $100.00 Product type 6 layer HDI pcb Material FR4 TG170 Field of application car electronics Layers/thickness 6L/1.0mm Line Space/width 4/3mil Surface treatment ENIG Minimum hole dia.

0.2mm Technical feature impedance control Layer: 1 to 16 layers

Material type: FR-4, CEM-3, High TG, FR4 Halogen Free, RIGID-FLEX Board thickness: 0.20mm to 3.4mm

copper thickness: 0.5 OZ to 6 OZ

copper thickness in hole: >25.0 um(>1mil)

Max size of finish board: 700*460mm

Min.

Drilled Hole Size: 1.0mm

Min.

Line Width: 3mil

Min.

Line Spacing: 3mil

Surface finishing: HASL/HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating Solder Mask Color: Green/Yellow/Black/White/ Red/Blue

Shape tolerance: ±4mil

Hole tolerance: PTH: ±3mil, NPTH: ±2mil

Package: Inner paking/Plastic bag, Outer packing: Standard carton packing Certificate: UL, SGS, ISO 9001: 2008, IATF16949

Special requirements: Buried and blind vias+controlled impedance+BGA

Profiling: Punching, Routing, V-CUT, Beveling

Company Contact:

• Posted By: KEYOU PCB CO, LTD.

• Phone: +8618926425302

• Address: QINGHU AREA , shenzhen , guangdong , China

• Email:

• Website: https://www.keyoucircuit.com

• Business Description: Established in2003, Shenzhen Keyou PCB Co., Ltd is a leading manufacturer of high-quality PCB products.

  located in city Shenzhen China, We Provide quick turn PCB prototype and different bulk of PCB production.

  For 15 years experience, Shenzhen Keyou PCB Co.,Ltd has achieved widespread recognition as a manufacturer in the PCB industry.

  We committed to providing the best and fastest service for our potential customer and becominga world-class hardware outsourcing design service provider.
