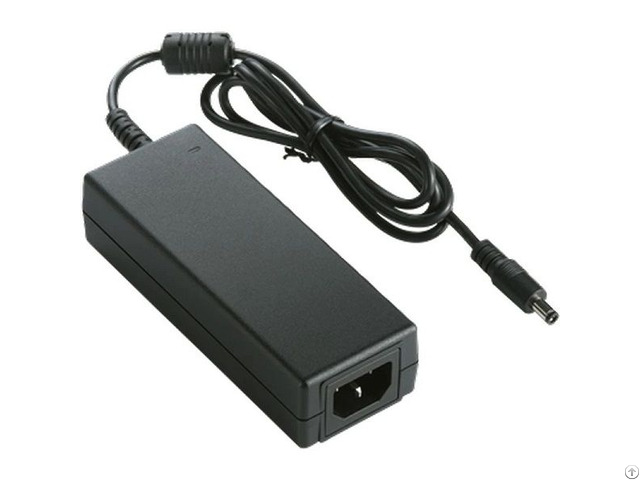

Gan Ac Dc Power Adapter 120w Series I T E - Taiwan
price: contact company for price
Desktop Type
ATS120TS-PXXX
XXX = O/P Voltage
P : C6 / C14 Features:
1 - IEC/EN/UL 62368-1 3rd Edition
2 - 100-240 VAC Universal Input
3 - Gallium Nitride Based Design by a GaN charger manufacturer
4 - High Power Density : 9.1W / in3
5 - With 200kHz Switching Frequency
6 - Efficiency up to 94%
7 - Regulated Output with Low Ripple Noise
8 - Modified and Custom Design Available
9 - 1 Year Warranty Specifications Details
Input:
1 - Voltage 100-240 VAC
2 - Line Frequency 50-60Hz
3 - Current 1.6A Max.
4 - Protection Internal Primary Current Fuse
5 - Configuration IEC60320 / C6, C14 Output:
1 - Load Regulation ± 5% (Typical)
2 - Ripple & Noise ≤1% Vp-p @ Full Load
3 - Transient (Dynamic) Response 0.5mS with 50% Load Change
4 - Start-up Time < 3, 000mS
5 - Hold-up Time ≥10mS @ Full Load
6 - Rise Time < 50mS
7 - Protection Short Circuit Protection/ Over Voltage Protection/ Over Current Protection/ Over Temperature Protection
Company Contact:
- Posted By: Adapter Technology Co., Ltd.
- Phone: 886-2-82262279
- Address: 6F, No.258, LianCheng Road., Zhonghe District, , New Taipei City, , na , Taiwan
- Email:
- Website: https://www.adaptertech.com.tw/
Published date: March 12, 2026
- Business Description: Adapter Technology Co.
Ltd. was founded in 2001 and it has become a promising and growing enterprise with design ability in the Power Supply Manufacturing industry.
We dedicate to providing reliable quality, flexible service and upgrading technology to meet customer’s request.
Our product line covers medical, defense, telecom, industrial applications, chargers and I.T.E.
power supply.
With strong R&D team’s support, we can custom design according to each different specification and provide the best solution to customers.
