Gigabit 2250022 4 Magnetic Rj45 Jacks - China

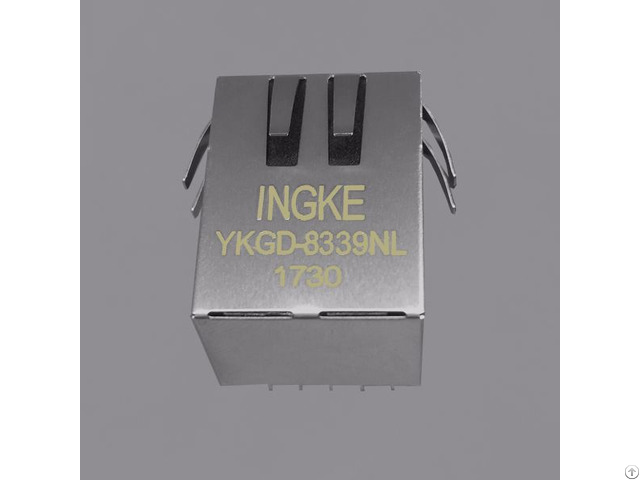

Ingke Technology YKGD-8339NL 100% cross Gigabit 2250022-4 Magnetic RJ45 jacks

Part Number : 2250022-4

Made in China: YKGD-8339NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green, Yellow - Green, Yellow

Number of Cores per Jack : 12

Shielding : Shielded, EMI Finger

Features: Board Lock

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Ally

Housing Material : Thermoplastic
