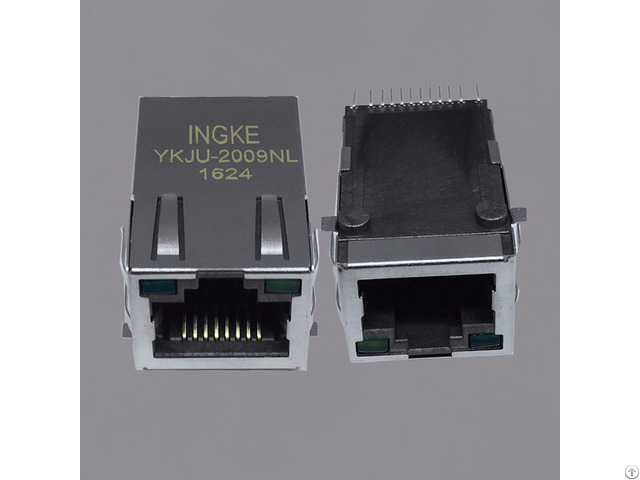

Ingke Ykju 2009nl Direct Substitute Arje 0034 10 100 Base T Smt Rj45 Magnetic Jack Connector - China

Part Number : ARJE-0034

Made in China: YKJU-2009NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Packaging : Tape & Reel (TR)

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Surface Mount

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green-Yellow

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features: Board Guide, Solder Retention

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

A63-113-431P112 A60-113-300P432 A63-113-331P422 A60-113-231N432 A63-113-213N491 A60-113-331P432 A60-263-300P562 A64-113-271P521 A63-113-300P131 A63-113-300P422 A63-113-231N435 A64-113-231N420 A63-113-331P431 A60-113-300P492 A60-113-331P411 A60-113-235N414 A60-113-200P471 A63-143-300N161 A63-143-313P161 A60-143-300P111 A63-113-331P4D2 A60-113-271N414 A60-112-331P4D2 A63-112-300P131
