Ingke Ykku 0329nl 100 Percent Cross 0826 1x1t Gh F Rj45 Magnetic Modular Jacks - China

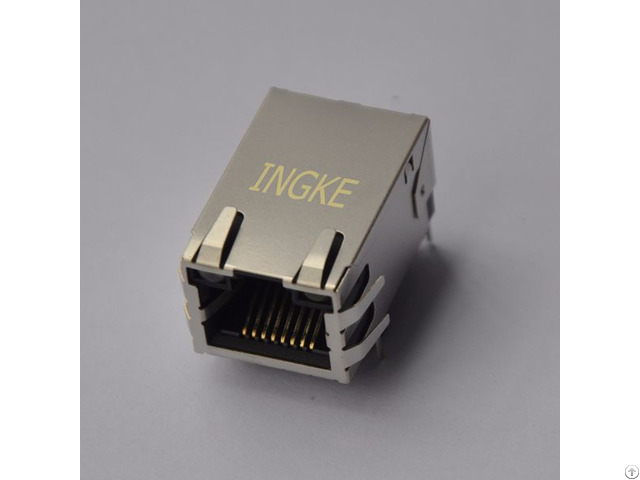

Ingke YKKU-0329NL 100% cross 0826-1X1T-GH-F RJ45 Magnetic Modular Jacks Part Number : 0826-1X1T-GH-F

Made in China: YKKU-0329NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green, Orange - Yellow

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

G10-1GHT-035 0826-1X4T-43-F S811-1X1T-36-F S811-1X1T-36-F S811-1X1T-36-F S811-1X1T-A4-F S811-1X1T-A4-F S811-1X1T-A4-F L829-1B1T-43 L829-1J1T-D2 S811-1X1T-06-F S811-1X1T-06-F S811-1X1T-06-F 08B1-1X1T-36-F 08B0-1D1T-06-F 08B0-1G1T-06-F 08B0-1X1T-06-F 08B0-1X1T-36-F 08B0-1X1T-03-F 08C2-1X1T-03 08C2-1X1T-36 0813-1X1T-57-F 0821-1X1T-36-F V890-1AX1-A1 L829-1J1T-43 0826-1X1T-M1-F L829-1X1T-91 0826-1K1T-43-F 0826-1X1T-43-F 0826-1X1T-32-F L834-1G1T-S7 0826-1X1T-GJ-F 0821-1X1T-43-F 0826-1A1T-23-F 0826-1K1T-23-F
