Ingke Ykku 1319nl 100 Percent Cross Jxk0 0190nl Single Port Rj45 Jacks With Integrated Magnetics - China

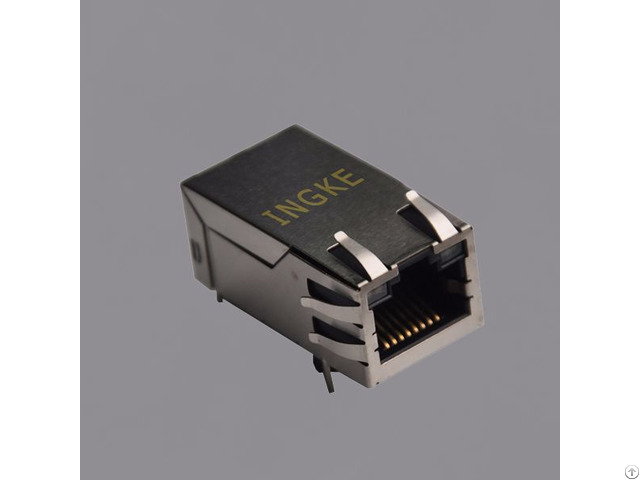

Ingke YKKU-1319NL 100% cross JXK0-0190NL Single Port RJ45 Jacks with Integrated Magnetics Part Number : JXK0-0190NL

Made in China: YKKU-1319NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Yellow, Green

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic

Ingke Technology Mass production of the following models; J2039H3B J2039H3C J2042H3C J3006G21D J3018G21K J3026G21D J8064D649P J8064E62 J8064E64 J8064E66 J8064E68 JK0-0026 JP006821U JP011821U JP026821U JV006I21 JV026I21 J0C-0003NL JK0-0018NL JK0-0026NL JK0-0014NL JK0-0016NL JK0-0017NL JK0-0020NL JK0-0025NL JC0-0063NL JG0-0045NL JG0-0051NL JC0-0019NL JK0-0044NL JK0-0036NL J0B-0368NL J0B-0386NL JC0-0131NL JX20-0115NL J0B-0366NL J20-0115NL
