J1011f01pnl Single Port Through Hole Tab Up Rj45 Jacks With Magnetics 10 100 Base Tx Automdix - China

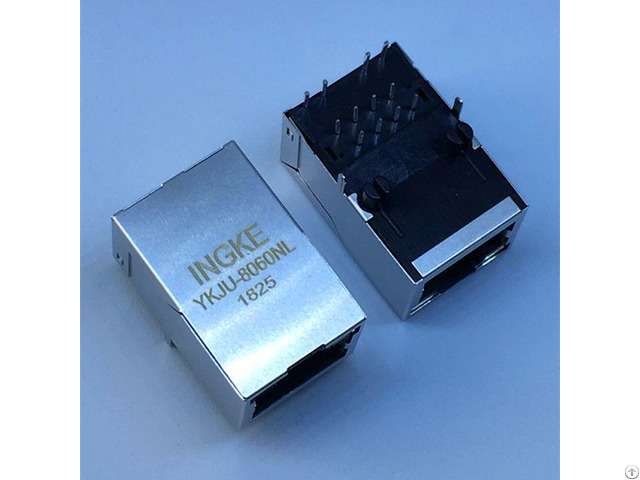

Ingke YKJU-8060NL 100% cross J1011F01PNL Single Port Through Hole Tab-Up RJ45 Jacks With Magnetics 10/100 Base-TX, AutoMDIX

Part Number : J1011F01PNL

Made in China: YKJU-8060NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100 Base-TX, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Yellow

Number of Cores per Jack : 4

Shielding : Shielded

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 15µin (0.38µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material : Thermoplastic

Ingke Technology Mass production of the following models;

JC0-0133NL J0B-3448NL J00-0065 J0011D21 J0026D21B J1012F21C J8064D628A J8064D648A J8064D668A J20-0013 J20-0014 JG0-0032 JK0-0014 JC0-0063NL JG0-0045NL JG0-0051NL JC0-0019NL JK0-0044NL JK0-0036NL J0B-0368NL J0B-0386NL JC0-0131NL JX20-0115NL J0B-0366NL J20-0115NL JX20-0116NL JC0-0132NL J20-0116NL JC0-3022NL JC0-0319NL

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: https://www.ingketech.net/

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
