J3011g21dnl Ykju 2009nl Single Port Smt 100 Base T Rj45 Network Connector - China

price: 1.00 Dollar US$

J3011g21dnl Ykju 2009nl Single Port Smt 100 Base T Rj45 Network Connector

Products Photos Catalog J3011g21dnl Ykju Photos Catalog

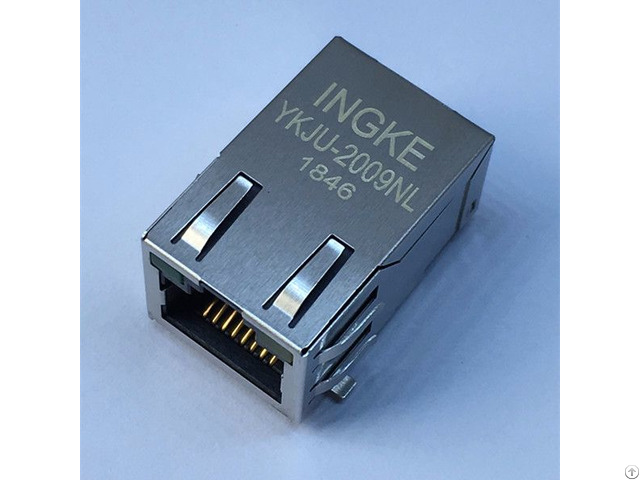

Ingke YKJU-2009NL 100% Cross J3011G21DNL Single Port SMT 100 Base-T RJ45 Network Connector Part Number: J3011G21DNL

Made in China: YKJU-2009NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100 Base-TX, AutoMDIX

Mounting Type: Surface Mount

Orientation: 90°Angle (Right)

Termination: Solder

LED Color: Green - Yellow

Number of Cores per Jack: 4

Shielding: Shielded

Features: Board Guide

Tab Direction: Up

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Contact Finish Thickness: 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material: Copper Ally

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;JXD1-0009NL JXD0-0019NL JX0026D21BNL JX30-0005NL JT4-1121HL JK0-0116NL JK0-0144BNL JXK0-0136NL JK0-0177NL JXK0-0190NL JXD1-0015NL JTL-U1002NL JT4-1128HL JTL-U1003NL JK0-0145NL JXR1-0011NLT JXR1-0015NLT J3026G21DNLT JX30-0005NLT JKM-0003NL JKM-0004NL JKM-0013NL JK0-0144NL JX0026D21NL JXKM-0004NL


Company Contact:


  • Phone: 86 (755) 3283-5625

  • Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

  • Email: Email


Published date: December 12, 2018

  • Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

    Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

    Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

    Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.

    Our Products:

    - a60 113 331p432 edac 1 port rj45 magnetic jack connector

    - we 7499111446 gigabit magnetic rj45 connectors

    - gigabit 2250022 4 magnetic rj45 jacks

    - trp 6605444 6 gigabit magnetic rj45 jacks

    - si 61031 f gigabit rj45 modular jack
