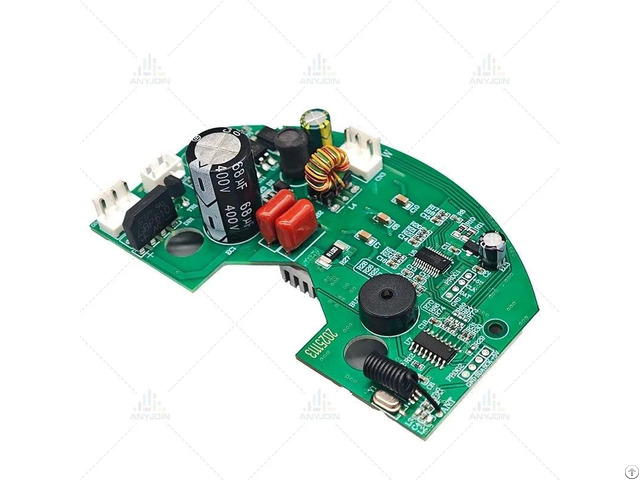

Low Voltage Bldc Ceiling Fan Control Amp Driver Board 12 48v - China

Bldc Ceiling Fan Driver Board

The Low Voltage BLDC Ceiling Fan Control & Driver Board is specially designed for low-voltage DC brushless ceiling fan applications, delivering precise speed regulation, stable startup performance, and efficient motor control.

Engineered to work with power supplies ranging from 12V to 48V, 10-30W, it is ideal for applications such as ceiling fans, portable fans, and ventilation systems.

Powered by the GP32FD1025G main control chip, this driver board delivers stable operation, intelligent motor control, low noise performance, and reliable protection functions for modern energy-saving ceiling fans.

With advanced sensorless FOC (Field Oriented Control) technology and strong motor parameter adaptability, the board enables smooth startup, efficient speed regulation, and quiet operation across different fan motor configurations.

This BLDC Ceiling Fan PCB (Controller Board) is suitable for residential ceiling fans, commercial ventilation systems, smart home fans, and industrial air circulation equipment.

Main Control Chip

GP32FD1025G

Product Features

- Speed support: 300RPM and above

- Rated power: above 20W

- Dual-resistor sensorless FOC control

- Supports zero-cross voltage detection

- Strong adaptability to different motor parameters

- No reverse rotation during startup

- Smooth low-speed startup

- Energy-saving and quiet operation

- Multiple control modes: IR remote control 433 wireless control BLE control

- IR remote control

- 433 wireless control

- BLE control

- Supports single or dual resistance startup

- Saves one current measurement circuit

Protection Functions

- Over-current protection

- Over-voltage protection

- Under-voltage protection

- Locked-rotor protection

- Phase loss protection

Product Advantages

This BLDC ceiling fan control board offers efficient motor driving capability with intelligent control performance.

The advanced FOC algorithm helps improve motor efficiency, reduce operating noise, and achieve stable low-speed performance.

The built-in protection mechanisms enhance operational safety and reliability during long-term use.

The board supports flexible control methods and adapts well to different BLDC ceiling fan motor parameters, making it suitable for a wide range of smart fan applications.

Applications

- BLDC ceiling fans

- Smart home ceiling fans

- Residential ventilation fans

- Commercial air circulation systems

- Industrial low-voltage BLDC fan equipment

- Energy-saving fan systems
