Nanocrystalline Instrument Current Transformer Cores - China

Instrument Current Transformer Cores Key Properties:

1 - Higher permeability for higher measuring accuracy (when compared with silicon steel core)

2 - Excellent to replacement of Mu-metal

3 - High Bs, 1.2T

4 - lower manufacturing costs (when compared with permalloy)

5 - Long durability range -30°C ~ + 180°C

Nanocrstalline Material Typical Parameter

Saturated Induction Density Bs = 1.2 T

Material Permeability µo >8x104 Gs/Oe

crystallization temperature Tx >510℃

Vickers Hardness Hv= 880 kg/mm2

Curie Temperature Tc >570°C

Density ρ = 7.2 g/cm3

Electrical Resistivity r = δ ≥130µΩcm

Thickness 29~35µm

Lamination Factor 0.75~0.82

Instrument Current Transformer Cores Main Application:

Instrument current transformer Core with accuracy class 0.2, 0.2s, Bushing current transformer for Epoxy resin cast, Gas insulated or oil-immersed switch-gears, LV, MV and HV switch-gear, power system, relay protection system, power monitoring devices.

Flexible Design:

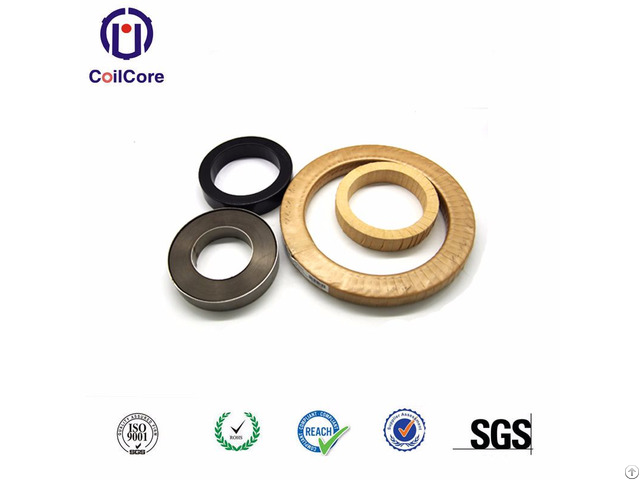

1 - Various Shape --Toroidal Shape, Rectangular Shape, Oval Shape.

2 - Different Packing Method: SS+PCB(Stainless Steel+Plastic); DMC (Plastic), Epoxy Resin Coating, Crepe Paper, PMP, DMP, glass cloth, etc.

3 - OEM Design.

Core Size Limited: Max.

OD1200mm; Min.

ID 3mm, Any height is available.

We can design & produce goods based on specifications & drawing, specification needed including:

1 - Bare core size, Size finished

2 - Current Transformer Turns Ratio

3 - Capacity (VA)

Accuracy
