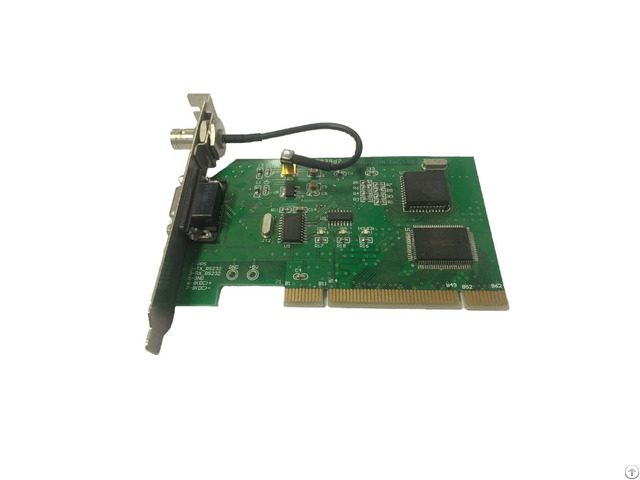

Sdi Timing Pci Card - China

SDI Timing PCI card is developed by our company independently.

It is used in providing unified system time to military and high-accuracy civil for improving precision of the system time.

The card can track GNSS signals at the same time or B code time source.

IRIG-B gets Beijing Time as time sourcing, GPS gets UTC time as the time sourcing.

The PCI cards has the function to judge whether the time source is valid.

Feature

Provide drivers

Provide secondary develop function library

Provide computer timing software

Integrate GPS receive decoding/B code timing decoding

Swiss directly when the error is below 1s between two time sources

Application

Data synchronous collection

Timing area

Computer time synchronized

Astronomy measurement and geodesic survey

Performance

Item No.

SDI-321 SDI-321/B

Signal tracking 12 GPS L1(option BDS B1) 12 GPS L1(option BDS B1)

Position accuracy 3m 3m

Timing accuracy

1pps ±50ns ±50ns(DC) ±50ns(GPS BDS)

Computer timing 10ms 10ms

Communication ports

PCI port 33MHz;32;ä»Žæ€»çº¿æŽ§åˆ¶è ¯·æ±‚ 33MHz;32;ä»Žæ€»çº¿æŽ§åˆ¶è ¯·æ±‚

PCI standard PCI2.2 PCI2.2

Communication ports PCI bus PCI bus

RS-232 RS-232

Environment

Operating temp -30℃~80℃ -30℃~80℃

Storage temp -40℃~105℃ -40℃~105℃

Physical

size 120×70mm 120×70mm
