Single Crystal Silicon Epi Wafer 4 Inch 6 Inch 8 Inch At Western Minmetals Sc Corporation - China

price: 1.00 Dollar US$

Single Crystal Silicon Epi Wafer 4 Inch 6 Inch 8 Inch At Western Minmetals Sc Corporation

Products Photos Catalog Crystal Silicon Epi Photos Catalog

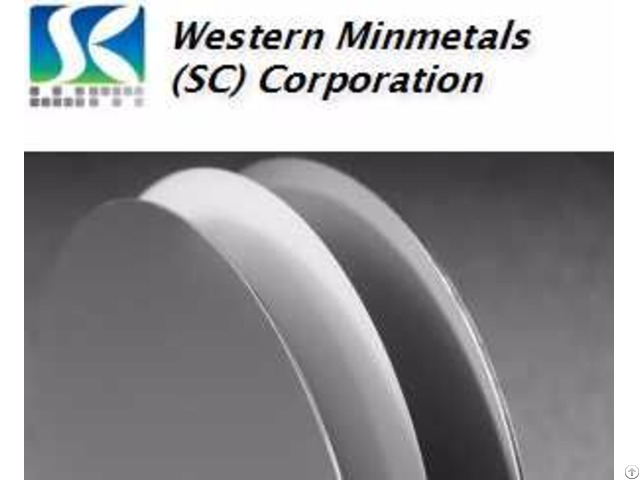

Single Crystal Silicon EPI Wafer 4" 6" 8" at Western Minmetals (SC) Corporation

Diameter: 4" 6" 8"

Substrate Layer

Growth Method: CZ MCZ FZ

Dopant: Boron / Phosphorus

Conductivity Type: P / N

Crystal Orientation: <100> <111>

Thickness: 510-540um

Resistivity: 0.006-0.0075 ohm.

cm

Primary Length: 40-45mm

TTV: 10% max, Bow: 30% max, Warp: 30% max

EPD: 100ea/cm2 max

Epitaxy Layer

Conductivity: N type or P type

Crystal Orientation: <100> <111> +/-0.5degree

Resistivity: 0.1-200 Ohm.

cm

RRV: 3% max

Resistivity Uniformity: 3% max

Standard Thickness: 1-100um

TTV: 5% max

Thickness Uniformity: 3% max

Stacking Faults: 50 ea/cm2 max

EPD: 100 ea/cm2 max

Packing Method: in form box or cassette, carton box outside

Application: widely serving the producing or development of Discrete, Si BiCMOS Devices, Si Bipolar Devices, IGBT, Si CMOS Devices, Si Power Devices and SOI, 6"8" are available.


Company Contact:


  • Phone: 862885187252

  • Address: E2-1-1011, Global Center, No.1700 Tianfu Avenue No, Chengdu , China

  • Email: Email


Published date: December 24, 2017

  • Business Description: Western Minmetals(SC) Corporation was founded in Chengdu.

    We are an

    important supplier of refractory material such as tungsten, molybdenum

    and mica to the advanced industry.

    We are a leading supplier of high purity materials for use in semiconductor compounds, imaging equipment and information industry.

    We are a major supplier of mono crystal silicon, cadmium telluride thin film cell material and semiconductor compounds for solar photovoltaic, integrated circuits and other electronic industry.

    We are an indispensable supplier of specialty chemicals and inorganic oxide materials to special metals and chemicals field.
