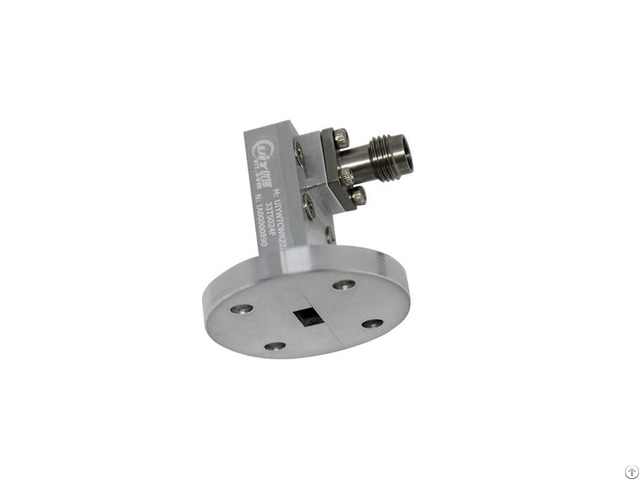

Wr22 Waveguide To Coaxial Adapter - China
price: 160.00 Dollar US$
WR22 (BJ400) - Waveguide to Coaxial Adapter Design Features 1 - High RF performance, ultra-competitive price.
2 - Military, space and commercial applications.
3 - Custom design available upon request.
4 - Support one year standard warranty.
RF Characteristics Model Number: UIYWTCWR22A33T5024F Freq.
Range(GHz): 33.0 ~ 50.0
Insertion Loss Max(dB): 0.4
VSWR Max: 1.25
Connector Type (Waveguide): WR22(BJ400) Connector Type (Coaxial): 2.4mm-F
CW Power (W): 3
Peak Power(W) : 100
Temp.
(°C): -55 ~ +85 Other Related Products： RF Isolators
RF Circulators
Attenuator/Termination
RF Filters
Power Divider/Splitter
Duplexer/Triplexer
TX RX Combiner/Splitter
Hybrid Combiner
Directional Coupler
Waveguide to Coaxial Adapter If you have any customized inquiries, please contact us promptly.
Company Contact:
- Posted By: UIYTECH
- Phone: +8613902992362
- Address: Shenbao Power Industrial Park, shenzhen , Guangdong , China
- Email:
- Website: https://www.uiyinc.com/
Published date: January 27, 2026
- Business Description: RF components supplier.
Our mainly products are RF Isolator, Circulator, RF Filter, Attenuator, Dummy Load, Duplixer, Waveguide to Coaxial Adapter etc.
